For lubrication
RAVENOL Vakuumpumpenoel ISO VG 100 is optimum alloyed and high level performance industrial oil with a wide range of applications throughout the industry. It is characterized by good viscosity-temperature behavior, high resistance to aging and reliable corrosion protection. Effective additives ensure even under extreme loads an excellent wear protection. Neutral behavior towards sealing materials.
Compliance with the requirements:
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
SAE: 100
- Available packaging
- Product parameters
Volume:
5 L
Vendor code:
1330707-005
Volume:
20 L, ecobox
Vendor code:
1330707-B20
Volume:
60 L
Vendor code:
1330707-060
Application instructions
RAVENOL Vakuumpumpenoel ISO VG 100 is suitable for the lubrication of vacuum pumps (rotary vane pumps, diffusion pumps, turbo pumps), where mineral oils are required, as well as for mist lubrication and crankcase.
RAVENOL Vakuumpumpenoel ISO VG 100 oil pumps can be used very well for the lubrication of crankcases. This vacuum pump oil should not be used in systems with silver or silver alloys.
Characteristics
- High performance leve
- Very good viscosity-temperature behavior
- High resistance to aging
- Excellent wear protection
- Reliable corrosion protection
- Very good oxidation stability
- Very good demulsification
- Excellent air release, which largely eliminates foam formation
- Neutral from over plastic seals
- Low pour point
| Parameter | Unit | Value | Tests | |
|---|---|---|---|---|
| SAE | 100 |
100
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
|
||
| specification | DIN 51506 VC, DIN 51524-2, ISO 6743-3 DVA, ISO 6743-3 DVC |
DIN 51506 VC, DIN 51524-2, ISO 6743-3 DVA, ISO 6743-3 DVC
|
||
| Density at 20 °C | g/cm³ | 875 | EN ISO 12185 |
875
g/cm³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 11.2 | DIN 51562-1 |
11.2
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 100.2 | DIN 51562-1 |
100.2
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 98 | DIN ISO 2909 |
98
DIN ISO 2909
|
|
| Approvals | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, DIN 51506 VC, DIN 51524-2, ISO 6743-3 DVA, ISO 6743-3 DVC, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, DIN 51506 VC, DIN 51524-2, ISO 6743-3 DVA, ISO 6743-3 DVC, Vickers Vane Pump
|
||
| Recommendations | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
|
RAVENOL Vakuumpumpenoel ISO VG 68
For lubrication
RAVENOL Vakuumpumpenoel ISO VG 68 is optimum alloyed and high level performance industrial oil with a wide range of applications throughout the industry. It is characterized by good viscosity-temperature behavior, high resistance to aging and reliable corrosion protection. Effective additives ensure even under extreme loads an excellent wear protection. Neutral behavior towards sealing materials.
Compliance with the requirements:
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
SAE: 68
- Available packaging
- Product parameters

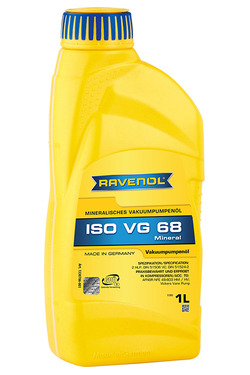

Volume:
1 L
Vendor code:
1330706-001

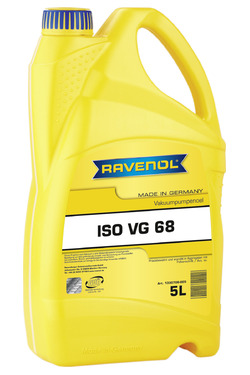

Volume:
5 L
Vendor code:
1330706-005

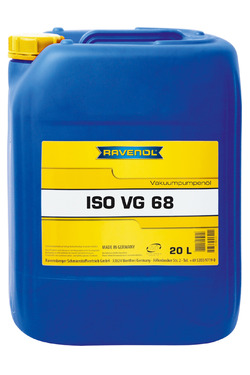

Volume:
20 L
Vendor code:
1330706-020
1330706-020-01-999
Code:
4014835758728
Volume:
20 L, ecobox
Vendor code:
1330706-B20

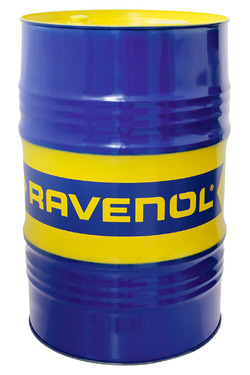

Volume:
60 L
Vendor code:
1330706-060
1330706-060-01-999
Code:
4014835758766
Volume:
208 L
Vendor code:
1330706-208
1330706-208-01-999
Application instructions
RAVENOL Vakuumpumpenoel ISO VG 68 is suitable for the lubrication of vacuum pumps (rotary vane pumps, diffusion pumps, turbo pumps), where mineral oils are required, as well as for mist lubrication and crankcase.
RAVENOL Vakuumpumpenoel ISO VG 68 oil pumps can be used very well for the lubrication of crankcases. This vacuum pump oil should not be used in systems with silver or silver alloys.
Characteristics
- High performance level
- Very good viscosity-temperature behavior
- High resistance to aging
- Excellent wear protection
- Reliable corrosion protection
- Very good oxidation stability
- Very good demulsification
- Excellent air release, which largely eliminates foam formation
- Neutral from over plastic seals
- Low pour point
| Parameter | Unit | Value | Tests | |
|---|---|---|---|---|
| SAE | 68 |
68
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
|
||
| specification | DIN 51506 VC, DIN 51524-2 |
DIN 51506 VC, DIN 51524-2
|
||
| Density at 20 °C | g/cm³ | 866 | EN ISO 12185 |
866
g/cm³
EN ISO 12185
|
| Color | light yellow | visual |
light yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 9 | DIN 51562-1 |
9
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 68 | DIN 51562-1 |
68
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 106 | DIN ISO 2909 |
106
DIN ISO 2909
|
|
| Approvals | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, DIN 51506 VC, DIN 51524-2, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, DIN 51506 VC, DIN 51524-2, Vickers Vane Pump
|
||
| Recommendations | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
|
RAVENOL Hydraulikoel TSX 15 (HVLP)
Hydraulic oil
RAVENOL Hydraulikoel TSX 15 (HVLP) is high quality multi-grade hydraulic oil type HVLP based on special selected solvent refined basic oils. It is characterised by a high stable viscosity index and a solid corrosion protection. Efficient additives offer an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.
Compliance with the requirements:
AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, GB 111118.1 L-HV, ISO 11158 HV, SAE MS 1004, Sauer-Danfoss 520L0463
SAE: 15
- Available packaging
- Product parameters
Volume:
1 L
Vendor code:
1323202-001
Volume:
5 L
Vendor code:
1323202-005
Volume:
20 L
Vendor code:
1323202-020
Volume:
20 L
Vendor code:
1323202-020-01-999
Volume:
20 L, ecobox
Vendor code:
1323202-B20
Volume:
60 L
Vendor code:
1323202-060
1323202-060-01-999
Code:
4014835759961
Volume:
208 L
Vendor code:
1323202-208
1323202-208-01-999
Code:
4014835759985
Volume:
1000 L
Vendor code:
1323202-700
Application instructions
RAVENOL Hydraulikoel TSX 15 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.
Characteristics
- A high and stable viscosity index
- An excellent corrosion protection
- An excellent protection against wear
- A very good air and water separation behaviour to prevent foam formation
- Neutral behaviour towards sealing of plastics
- A very low pour point
| Parameter | Unit | Value | Tests | |
|---|---|---|---|---|
| SAE | 15 |
15
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, GB 111118.1 L-HV, ISO 11158 HV, SAE MS 1004, Sauer-Danfoss 520L0463 |
AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, GB 111118.1 L-HV, ISO 11158 HV, SAE MS 1004, Sauer-Danfoss 520L0463
|
||
| specification | DIN 51524-3, ISO 6743-4 HV |
DIN 51524-3, ISO 6743-4 HV
|
||
| Density at 20 °C | g/cm³ | 839.2 | EN ISO 12185 |
839.2
g/cm³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 3.9 | DIN 51562-1 |
3.9
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 15.1 | DIN 51562-1 |
15.1
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 166 | DIN ISO 2909 |
166
DIN ISO 2909
|
|
| Approvals | AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, DIN 51524-3, GB 111118.1 L-HV, ISO 11158 HV, ISO 6743-4 HV, SAE MS 1004, Sauer-Danfoss 520L0463 |
AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, DIN 51524-3, GB 111118.1 L-HV, ISO 11158 HV, ISO 6743-4 HV, SAE MS 1004, Sauer-Danfoss 520L0463
|
||
| Recommendations | AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, CETOP RP 91H HV, GB 111118.1 L-HV, ISO 11158 HV, SAE MS1004, Sauer-Danfoss 520L0463 |
AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, CETOP RP 91H HV, GB 111118.1 L-HV, ISO 11158 HV, SAE MS1004, Sauer-Danfoss 520L0463
|
RAVENOL Hydraulikoel TSX 32 (HVLP)
For hydraulics
RAVENOL Hydraulikoel TSX 32 (HVLP) is high quality multi-grade hydraulic oil type HVLP based on special selected solvent refined basic oils. It is characterised by a high stable viscosity index and a solid corrosion protection. Efficient additives offer an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.
Compliance with the requirements:
Bosch Rexroth RE 90220, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GM LH-03-1-04, GM LS-2, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sauer-Danfoss 520L0463
SAE: 32W
- Available packaging
- Product parameters
Volume:
1 L
Vendor code:
1323204-001
Volume:
5 L
Vendor code:
1323204-005
Volume:
20 L
Vendor code:
1323204-020
1323204-020-01-999
Code:
4014835760127
Volume:
20 L, ecobox
Vendor code:
1323204-B20
Volume:
60 L
Vendor code:
1323204-060
1323204-060-01-999
Code:
4014835760165
Volume:
208 L
Vendor code:
1323204-208
1323204-208-01-999
Code:
4014835760189
Volume:
1000 L
Vendor code:
1323204-700
Application instructions
RAVENOL Hydraulikoel TSX 32 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.
Characteristics
- A high and stable viscosity index
- An excellent corrosion protection
- An excellent protection against wear
- A very good air and water separation behaviour to prevent foam formation
- Neutral behaviour towards sealing of plastics
- A very low pour point
| Parameter | Unit | Value | Tests | |
|---|---|---|---|---|
| SAE | 32W |
32W
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | Bosch Rexroth RE 90220, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GM LH-03-1-04, GM LS-2, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sauer-Danfoss 520L0463 |
Bosch Rexroth RE 90220, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GM LH-03-1-04, GM LS-2, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sauer-Danfoss 520L0463
|
||
| specification | AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Cetop RP 91H HV, DIN 51524-3, GB 111118.1 L-HV, ISO 11158 HV, ISO 6743-4 HV, JCMAS HK VG32W, SAE MS 1004, U.S. Steel 127, U.S. Steel 136 |
AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Cetop RP 91H HV, DIN 51524-3, GB 111118.1 L-HV, ISO 11158 HV, ISO 6743-4 HV, JCMAS HK VG32W, SAE MS 1004, U.S. Steel 127, U.S. Steel 136
|
||
| Density at 20 °C | g/cm³ | 845 | EN ISO 12185 |
845
g/cm³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 6.3 | DIN 51562-1 |
6.3
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 32 | DIN 51562-1 |
32
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 152 | DIN ISO 2909 |
152
DIN ISO 2909
|
|
| tbn | mgKOH/g | 0.4 | ASTM D2896 |
0.4
mgKOH/g
ASTM D2896
|
| Approvals | AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, DIN 51524-3, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GB 111118.1 L-HV, GM LH-03-1-04, GM LS-2, ISO 11158 HV, ISO 6743-4 HV, JCMAS HK VG32W, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004, Sauer-Danfoss 520L0463, U.S. Steel 127, U.S. Steel 136 |
AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, DIN 51524-3, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GB 111118.1 L-HV, GM LH-03-1-04, GM LS-2, ISO 11158 HV, ISO 6743-4 HV, JCMAS HK VG32W, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004, Sauer-Danfoss 520L0463, U.S. Steel 127, U.S. Steel 136
|
||
| Recommendations | Bosch Rexroth RE 90220, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GM LH-03-1-04, GM LS-2, Parker Denison HF-0, Parker Denison HF-1, Parker Dension HF-2, Sauer-Danfoss 520L0463 |
Bosch Rexroth RE 90220, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GM LH-03-1-04, GM LS-2, Parker Denison HF-0, Parker Denison HF-1, Parker Dension HF-2, Sauer-Danfoss 520L0463
|
RAVENOL Vakuumpumpenöl ISO VG 150
RAVENOL Vakuumpumpenoel ISO VG 150 is optimum alloyed and high level performance industrial oil with a wide range of applications throughout the industry. It is characterized by good viscosity-temperature behavior, high resistance to aging and reliable corrosion protection. Effective additives ensure even under extreme loads an excellent wear protection. Neutral behavior towards sealing materials.
Compliance with the requirements:
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
SAE: 150
- Available packaging
- Product parameters
Volume:
20 L
Vendor code:
1330708-020
1330708-020-01-999

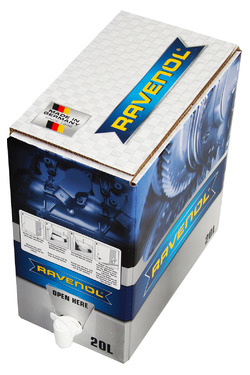

Volume:
20 L, ecobox
Vendor code:
1330708-B20
Volume:
60 L
Vendor code:
1330708-060
1330708-060-01-999
Volume:
208 L
Vendor code:
1330708-208
1330708-208-01-999
Application instructions
RAVENOL Vakuumpumpenoel ISO VG 150 is suitable for the lubrication of vacuum pumps (rotary vane pumps, diffusion pumps, turbo pumps), where mineral oils are required, as well as for mist lubrication and crankcase.
RAVENOL Vakuumpumpenoel ISO VG 150 oil pumps can be used very well for the lubrication of crankcases. This vacuum pump oil should not be used in systems with silver or silver alloys.
Characteristics
- High performance level
- Very good viscosity-temperature behavior
- High resistance to aging
- Excellent wear protection
- Reliable corrosion protection
- Very good oxidation stability
- Very good demulsification
- Excellent air release, which largely eliminates foam formation
- Neutral from over plastic seals
- Low pour point
| Parameter | Unit | Value | Tests | |
|---|---|---|---|---|
| SAE | 150 |
150
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
|
||
| specification | DIN 51506 VC, DIN 51524-2 |
DIN 51506 VC, DIN 51524-2
|
||
| Density at 20 °C | g/cm³ | 886 | EN ISO 12185 |
886
g/cm³
EN ISO 12185
|
| Color | Light brown | visual |
Light brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 14.6 | DIN 51562-1 |
14.6
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 150 | DIN 51562-1 |
150
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 95 | DIN ISO 2909 |
95
DIN ISO 2909
|
|
| Acid Number TAN | mgKOH/g | 0.4 | ASTM D664 |
0.4
mgKOH/g
ASTM D664
|
| Approvals | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, DIN 51506 VC, DIN 51524-2, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, DIN 51506 VC, DIN 51524-2, Vickers Vane Pump
|
||
| Recommendations | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
|
For lubrication
RAVENOL Vakuumpumpenoel ISO VG 100 is optimum alloyed and high level performance industrial oil with a wide range of applications throughout the industry. It is characterized by good viscosity-temperature behavior, high resistance to aging and reliable corrosion protection. Effective additives ensure even under extreme loads an excellent wear protection. Neutral behavior towards sealing materials.
Compliance with the requirements:
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
SAE: 100
- Available packaging
- Product parameters
Volume:
5 L
Vendor code:
1330707-005
Volume:
20 L, ecobox
Vendor code:
1330707-B20
Volume:
60 L
Vendor code:
1330707-060
Application instructions
RAVENOL Vakuumpumpenoel ISO VG 100 is suitable for the lubrication of vacuum pumps (rotary vane pumps, diffusion pumps, turbo pumps), where mineral oils are required, as well as for mist lubrication and crankcase.
RAVENOL Vakuumpumpenoel ISO VG 100 oil pumps can be used very well for the lubrication of crankcases. This vacuum pump oil should not be used in systems with silver or silver alloys.
Characteristics
- High performance leve
- Very good viscosity-temperature behavior
- High resistance to aging
- Excellent wear protection
- Reliable corrosion protection
- Very good oxidation stability
- Very good demulsification
- Excellent air release, which largely eliminates foam formation
- Neutral from over plastic seals
- Low pour point
| Parameter | Unit | Value | Tests | |
|---|---|---|---|---|
| SAE | 100 |
100
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
|
||
| specification | DIN 51506 VC, DIN 51524-2, ISO 6743-3 DVA, ISO 6743-3 DVC |
DIN 51506 VC, DIN 51524-2, ISO 6743-3 DVA, ISO 6743-3 DVC
|
||
| Density at 20 °C | g/cm³ | 875 | EN ISO 12185 |
875
g/cm³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 11.2 | DIN 51562-1 |
11.2
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 100.2 | DIN 51562-1 |
100.2
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 98 | DIN ISO 2909 |
98
DIN ISO 2909
|
|
| Approvals | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, DIN 51506 VC, DIN 51524-2, ISO 6743-3 DVA, ISO 6743-3 DVC, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, DIN 51506 VC, DIN 51524-2, ISO 6743-3 DVA, ISO 6743-3 DVC, Vickers Vane Pump
|
||
| Recommendations | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
|
RAVENOL Vakuumpumpenoel ISO VG 68
For lubrication
RAVENOL Vakuumpumpenoel ISO VG 68 is optimum alloyed and high level performance industrial oil with a wide range of applications throughout the industry. It is characterized by good viscosity-temperature behavior, high resistance to aging and reliable corrosion protection. Effective additives ensure even under extreme loads an excellent wear protection. Neutral behavior towards sealing materials.
Compliance with the requirements:
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
SAE: 68
- Available packaging
- Product parameters
Volume:
1 L
Vendor code:
1330706-001
Volume:
5 L
Vendor code:
1330706-005
Volume:
20 L
Vendor code:
1330706-020
1330706-020-01-999
Code:
4014835758728
Volume:
20 L, ecobox
Vendor code:
1330706-B20
Volume:
60 L
Vendor code:
1330706-060
1330706-060-01-999
Code:
4014835758766
Volume:
208 L
Vendor code:
1330706-208
1330706-208-01-999
Application instructions
RAVENOL Vakuumpumpenoel ISO VG 68 is suitable for the lubrication of vacuum pumps (rotary vane pumps, diffusion pumps, turbo pumps), where mineral oils are required, as well as for mist lubrication and crankcase.
RAVENOL Vakuumpumpenoel ISO VG 68 oil pumps can be used very well for the lubrication of crankcases. This vacuum pump oil should not be used in systems with silver or silver alloys.
Characteristics
- High performance level
- Very good viscosity-temperature behavior
- High resistance to aging
- Excellent wear protection
- Reliable corrosion protection
- Very good oxidation stability
- Very good demulsification
- Excellent air release, which largely eliminates foam formation
- Neutral from over plastic seals
- Low pour point
| Parameter | Unit | Value | Tests | |
|---|---|---|---|---|
| SAE | 68 |
68
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
|
||
| specification | DIN 51506 VC, DIN 51524-2 |
DIN 51506 VC, DIN 51524-2
|
||
| Density at 20 °C | g/cm³ | 866 | EN ISO 12185 |
866
g/cm³
EN ISO 12185
|
| Color | light yellow | visual |
light yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 9 | DIN 51562-1 |
9
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 68 | DIN 51562-1 |
68
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 106 | DIN ISO 2909 |
106
DIN ISO 2909
|
|
| Approvals | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, DIN 51506 VC, DIN 51524-2, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, DIN 51506 VC, DIN 51524-2, Vickers Vane Pump
|
||
| Recommendations | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
|
RAVENOL Hydraulikoel TSX 15 (HVLP)
Hydraulic oil
RAVENOL Hydraulikoel TSX 15 (HVLP) is high quality multi-grade hydraulic oil type HVLP based on special selected solvent refined basic oils. It is characterised by a high stable viscosity index and a solid corrosion protection. Efficient additives offer an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.
Compliance with the requirements:
AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, GB 111118.1 L-HV, ISO 11158 HV, SAE MS 1004, Sauer-Danfoss 520L0463
SAE: 15
- Available packaging
- Product parameters
Volume:
1 L
Vendor code:
1323202-001
Volume:
5 L
Vendor code:
1323202-005
Volume:
20 L
Vendor code:
1323202-020
Volume:
20 L
Vendor code:
1323202-020-01-999
Volume:
20 L, ecobox
Vendor code:
1323202-B20
Volume:
60 L
Vendor code:
1323202-060
1323202-060-01-999
Code:
4014835759961
Volume:
208 L
Vendor code:
1323202-208
1323202-208-01-999
Code:
4014835759985
Volume:
1000 L
Vendor code:
1323202-700
Application instructions
RAVENOL Hydraulikoel TSX 15 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.
Characteristics
- A high and stable viscosity index
- An excellent corrosion protection
- An excellent protection against wear
- A very good air and water separation behaviour to prevent foam formation
- Neutral behaviour towards sealing of plastics
- A very low pour point
| Parameter | Unit | Value | Tests | |
|---|---|---|---|---|
| SAE | 15 |
15
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, GB 111118.1 L-HV, ISO 11158 HV, SAE MS 1004, Sauer-Danfoss 520L0463 |
AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, GB 111118.1 L-HV, ISO 11158 HV, SAE MS 1004, Sauer-Danfoss 520L0463
|
||
| specification | DIN 51524-3, ISO 6743-4 HV |
DIN 51524-3, ISO 6743-4 HV
|
||
| Density at 20 °C | g/cm³ | 839.2 | EN ISO 12185 |
839.2
g/cm³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 3.9 | DIN 51562-1 |
3.9
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 15.1 | DIN 51562-1 |
15.1
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 166 | DIN ISO 2909 |
166
DIN ISO 2909
|
|
| Approvals | AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, DIN 51524-3, GB 111118.1 L-HV, ISO 11158 HV, ISO 6743-4 HV, SAE MS 1004, Sauer-Danfoss 520L0463 |
AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, DIN 51524-3, GB 111118.1 L-HV, ISO 11158 HV, ISO 6743-4 HV, SAE MS 1004, Sauer-Danfoss 520L0463
|
||
| Recommendations | AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, CETOP RP 91H HV, GB 111118.1 L-HV, ISO 11158 HV, SAE MS1004, Sauer-Danfoss 520L0463 |
AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, CETOP RP 91H HV, GB 111118.1 L-HV, ISO 11158 HV, SAE MS1004, Sauer-Danfoss 520L0463
|
RAVENOL Hydraulikoel TSX 32 (HVLP)
For hydraulics
RAVENOL Hydraulikoel TSX 32 (HVLP) is high quality multi-grade hydraulic oil type HVLP based on special selected solvent refined basic oils. It is characterised by a high stable viscosity index and a solid corrosion protection. Efficient additives offer an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.
Compliance with the requirements:
Bosch Rexroth RE 90220, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GM LH-03-1-04, GM LS-2, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sauer-Danfoss 520L0463
SAE: 32W
- Available packaging
- Product parameters
Volume:
1 L
Vendor code:
1323204-001
Volume:
5 L
Vendor code:
1323204-005
Volume:
20 L
Vendor code:
1323204-020
1323204-020-01-999
Code:
4014835760127
Volume:
20 L, ecobox
Vendor code:
1323204-B20
Volume:
60 L
Vendor code:
1323204-060
1323204-060-01-999
Code:
4014835760165
Volume:
208 L
Vendor code:
1323204-208
1323204-208-01-999
Code:
4014835760189
Volume:
1000 L
Vendor code:
1323204-700
Application instructions
RAVENOL Hydraulikoel TSX 32 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.
Characteristics
- A high and stable viscosity index
- An excellent corrosion protection
- An excellent protection against wear
- A very good air and water separation behaviour to prevent foam formation
- Neutral behaviour towards sealing of plastics
- A very low pour point
| Parameter | Unit | Value | Tests | |
|---|---|---|---|---|
| SAE | 32W |
32W
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | Bosch Rexroth RE 90220, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GM LH-03-1-04, GM LS-2, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sauer-Danfoss 520L0463 |
Bosch Rexroth RE 90220, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GM LH-03-1-04, GM LS-2, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sauer-Danfoss 520L0463
|
||
| specification | AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Cetop RP 91H HV, DIN 51524-3, GB 111118.1 L-HV, ISO 11158 HV, ISO 6743-4 HV, JCMAS HK VG32W, SAE MS 1004, U.S. Steel 127, U.S. Steel 136 |
AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Cetop RP 91H HV, DIN 51524-3, GB 111118.1 L-HV, ISO 11158 HV, ISO 6743-4 HV, JCMAS HK VG32W, SAE MS 1004, U.S. Steel 127, U.S. Steel 136
|
||
| Density at 20 °C | g/cm³ | 845 | EN ISO 12185 |
845
g/cm³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 6.3 | DIN 51562-1 |
6.3
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 32 | DIN 51562-1 |
32
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 152 | DIN ISO 2909 |
152
DIN ISO 2909
|
|
| tbn | mgKOH/g | 0.4 | ASTM D2896 |
0.4
mgKOH/g
ASTM D2896
|
| Approvals | AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, DIN 51524-3, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GB 111118.1 L-HV, GM LH-03-1-04, GM LS-2, ISO 11158 HV, ISO 6743-4 HV, JCMAS HK VG32W, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004, Sauer-Danfoss 520L0463, U.S. Steel 127, U.S. Steel 136 |
AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, DIN 51524-3, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GB 111118.1 L-HV, GM LH-03-1-04, GM LS-2, ISO 11158 HV, ISO 6743-4 HV, JCMAS HK VG32W, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004, Sauer-Danfoss 520L0463, U.S. Steel 127, U.S. Steel 136
|
||
| Recommendations | Bosch Rexroth RE 90220, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GM LH-03-1-04, GM LS-2, Parker Denison HF-0, Parker Denison HF-1, Parker Dension HF-2, Sauer-Danfoss 520L0463 |
Bosch Rexroth RE 90220, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GM LH-03-1-04, GM LS-2, Parker Denison HF-0, Parker Denison HF-1, Parker Dension HF-2, Sauer-Danfoss 520L0463
|
RAVENOL Vakuumpumpenöl ISO VG 150
RAVENOL Vakuumpumpenoel ISO VG 150 is optimum alloyed and high level performance industrial oil with a wide range of applications throughout the industry. It is characterized by good viscosity-temperature behavior, high resistance to aging and reliable corrosion protection. Effective additives ensure even under extreme loads an excellent wear protection. Neutral behavior towards sealing materials.
Compliance with the requirements:
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
SAE: 150
- Available packaging
- Product parameters
Volume:
20 L
Vendor code:
1330708-020
1330708-020-01-999
Volume:
20 L, ecobox
Vendor code:
1330708-B20
Volume:
60 L
Vendor code:
1330708-060
1330708-060-01-999
Volume:
208 L
Vendor code:
1330708-208
1330708-208-01-999
Application instructions
RAVENOL Vakuumpumpenoel ISO VG 150 is suitable for the lubrication of vacuum pumps (rotary vane pumps, diffusion pumps, turbo pumps), where mineral oils are required, as well as for mist lubrication and crankcase.
RAVENOL Vakuumpumpenoel ISO VG 150 oil pumps can be used very well for the lubrication of crankcases. This vacuum pump oil should not be used in systems with silver or silver alloys.
Characteristics
- High performance level
- Very good viscosity-temperature behavior
- High resistance to aging
- Excellent wear protection
- Reliable corrosion protection
- Very good oxidation stability
- Very good demulsification
- Excellent air release, which largely eliminates foam formation
- Neutral from over plastic seals
- Low pour point
| Parameter | Unit | Value | Tests | |
|---|---|---|---|---|
| SAE | 150 |
150
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
|
||
| specification | DIN 51506 VC, DIN 51524-2 |
DIN 51506 VC, DIN 51524-2
|
||
| Density at 20 °C | g/cm³ | 886 | EN ISO 12185 |
886
g/cm³
EN ISO 12185
|
| Color | Light brown | visual |
Light brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 14.6 | DIN 51562-1 |
14.6
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 150 | DIN 51562-1 |
150
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 95 | DIN ISO 2909 |
95
DIN ISO 2909
|
|
| Acid Number TAN | mgKOH/g | 0.4 | ASTM D664 |
0.4
mgKOH/g
ASTM D664
|
| Approvals | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, DIN 51506 VC, DIN 51524-2, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, DIN 51506 VC, DIN 51524-2, Vickers Vane Pump
|
||
| Recommendations | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
|
For lubrication
RAVENOL Vakuumpumpenoel ISO VG 100 is optimum alloyed and high level performance industrial oil with a wide range of applications throughout the industry. It is characterized by good viscosity-temperature behavior, high resistance to aging and reliable corrosion protection. Effective additives ensure even under extreme loads an excellent wear protection. Neutral behavior towards sealing materials.
Compliance with the requirements:
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
SAE: 100
- Available packaging
- Product parameters
Volume:
5 L
Vendor code:
1330707-005
Volume:
20 L, ecobox
Vendor code:
1330707-B20
Volume:
60 L
Vendor code:
1330707-060
Application instructions
RAVENOL Vakuumpumpenoel ISO VG 100 is suitable for the lubrication of vacuum pumps (rotary vane pumps, diffusion pumps, turbo pumps), where mineral oils are required, as well as for mist lubrication and crankcase.
RAVENOL Vakuumpumpenoel ISO VG 100 oil pumps can be used very well for the lubrication of crankcases. This vacuum pump oil should not be used in systems with silver or silver alloys.
Characteristics
- High performance leve
- Very good viscosity-temperature behavior
- High resistance to aging
- Excellent wear protection
- Reliable corrosion protection
- Very good oxidation stability
- Very good demulsification
- Excellent air release, which largely eliminates foam formation
- Neutral from over plastic seals
- Low pour point
| Parameter | Unit | Value | Tests | |
|---|---|---|---|---|
| SAE | 100 |
100
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
|
||
| specification | DIN 51506 VC, DIN 51524-2, ISO 6743-3 DVA, ISO 6743-3 DVC |
DIN 51506 VC, DIN 51524-2, ISO 6743-3 DVA, ISO 6743-3 DVC
|
||
| Density at 20 °C | g/cm³ | 875 | EN ISO 12185 |
875
g/cm³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 11.2 | DIN 51562-1 |
11.2
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 100.2 | DIN 51562-1 |
100.2
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 98 | DIN ISO 2909 |
98
DIN ISO 2909
|
|
| Approvals | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, DIN 51506 VC, DIN 51524-2, ISO 6743-3 DVA, ISO 6743-3 DVC, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, DIN 51506 VC, DIN 51524-2, ISO 6743-3 DVA, ISO 6743-3 DVC, Vickers Vane Pump
|
||
| Recommendations | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
|
RAVENOL Vakuumpumpenoel ISO VG 68
For lubrication
RAVENOL Vakuumpumpenoel ISO VG 68 is optimum alloyed and high level performance industrial oil with a wide range of applications throughout the industry. It is characterized by good viscosity-temperature behavior, high resistance to aging and reliable corrosion protection. Effective additives ensure even under extreme loads an excellent wear protection. Neutral behavior towards sealing materials.
Compliance with the requirements:
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
SAE: 68
- Available packaging
- Product parameters
Volume:
1 L
Vendor code:
1330706-001
Volume:
5 L
Vendor code:
1330706-005
Volume:
20 L
Vendor code:
1330706-020
1330706-020-01-999
Code:
4014835758728
Volume:
20 L, ecobox
Vendor code:
1330706-B20
Volume:
60 L
Vendor code:
1330706-060
1330706-060-01-999
Code:
4014835758766
Volume:
208 L
Vendor code:
1330706-208
1330706-208-01-999
Application instructions
RAVENOL Vakuumpumpenoel ISO VG 68 is suitable for the lubrication of vacuum pumps (rotary vane pumps, diffusion pumps, turbo pumps), where mineral oils are required, as well as for mist lubrication and crankcase.
RAVENOL Vakuumpumpenoel ISO VG 68 oil pumps can be used very well for the lubrication of crankcases. This vacuum pump oil should not be used in systems with silver or silver alloys.
Characteristics
- High performance level
- Very good viscosity-temperature behavior
- High resistance to aging
- Excellent wear protection
- Reliable corrosion protection
- Very good oxidation stability
- Very good demulsification
- Excellent air release, which largely eliminates foam formation
- Neutral from over plastic seals
- Low pour point
| Parameter | Unit | Value | Tests | |
|---|---|---|---|---|
| SAE | 68 |
68
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
|
||
| specification | DIN 51506 VC, DIN 51524-2 |
DIN 51506 VC, DIN 51524-2
|
||
| Density at 20 °C | g/cm³ | 866 | EN ISO 12185 |
866
g/cm³
EN ISO 12185
|
| Color | light yellow | visual |
light yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 9 | DIN 51562-1 |
9
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 68 | DIN 51562-1 |
68
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 106 | DIN ISO 2909 |
106
DIN ISO 2909
|
|
| Approvals | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, DIN 51506 VC, DIN 51524-2, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, DIN 51506 VC, DIN 51524-2, Vickers Vane Pump
|
||
| Recommendations | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
|
RAVENOL Hydraulikoel TSX 15 (HVLP)
Hydraulic oil
RAVENOL Hydraulikoel TSX 15 (HVLP) is high quality multi-grade hydraulic oil type HVLP based on special selected solvent refined basic oils. It is characterised by a high stable viscosity index and a solid corrosion protection. Efficient additives offer an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.
Compliance with the requirements:
AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, GB 111118.1 L-HV, ISO 11158 HV, SAE MS 1004, Sauer-Danfoss 520L0463
SAE: 15
- Available packaging
- Product parameters
Volume:
1 L
Vendor code:
1323202-001
Volume:
5 L
Vendor code:
1323202-005
Volume:
20 L
Vendor code:
1323202-020
Volume:
20 L
Vendor code:
1323202-020-01-999
Volume:
20 L, ecobox
Vendor code:
1323202-B20
Volume:
60 L
Vendor code:
1323202-060
1323202-060-01-999
Code:
4014835759961
Volume:
208 L
Vendor code:
1323202-208
1323202-208-01-999
Code:
4014835759985
Volume:
1000 L
Vendor code:
1323202-700
Application instructions
RAVENOL Hydraulikoel TSX 15 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.
Characteristics
- A high and stable viscosity index
- An excellent corrosion protection
- An excellent protection against wear
- A very good air and water separation behaviour to prevent foam formation
- Neutral behaviour towards sealing of plastics
- A very low pour point
| Parameter | Unit | Value | Tests | |
|---|---|---|---|---|
| SAE | 15 |
15
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, GB 111118.1 L-HV, ISO 11158 HV, SAE MS 1004, Sauer-Danfoss 520L0463 |
AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, GB 111118.1 L-HV, ISO 11158 HV, SAE MS 1004, Sauer-Danfoss 520L0463
|
||
| specification | DIN 51524-3, ISO 6743-4 HV |
DIN 51524-3, ISO 6743-4 HV
|
||
| Density at 20 °C | g/cm³ | 839.2 | EN ISO 12185 |
839.2
g/cm³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 3.9 | DIN 51562-1 |
3.9
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 15.1 | DIN 51562-1 |
15.1
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 166 | DIN ISO 2909 |
166
DIN ISO 2909
|
|
| Approvals | AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, DIN 51524-3, GB 111118.1 L-HV, ISO 11158 HV, ISO 6743-4 HV, SAE MS 1004, Sauer-Danfoss 520L0463 |
AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, DIN 51524-3, GB 111118.1 L-HV, ISO 11158 HV, ISO 6743-4 HV, SAE MS 1004, Sauer-Danfoss 520L0463
|
||
| Recommendations | AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, CETOP RP 91H HV, GB 111118.1 L-HV, ISO 11158 HV, SAE MS1004, Sauer-Danfoss 520L0463 |
AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, CETOP RP 91H HV, GB 111118.1 L-HV, ISO 11158 HV, SAE MS1004, Sauer-Danfoss 520L0463
|
RAVENOL Hydraulikoel TSX 32 (HVLP)
For hydraulics
RAVENOL Hydraulikoel TSX 32 (HVLP) is high quality multi-grade hydraulic oil type HVLP based on special selected solvent refined basic oils. It is characterised by a high stable viscosity index and a solid corrosion protection. Efficient additives offer an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.
Compliance with the requirements:
Bosch Rexroth RE 90220, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GM LH-03-1-04, GM LS-2, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sauer-Danfoss 520L0463
SAE: 32W
- Available packaging
- Product parameters
Volume:
1 L
Vendor code:
1323204-001
Volume:
5 L
Vendor code:
1323204-005
Volume:
20 L
Vendor code:
1323204-020
1323204-020-01-999
Code:
4014835760127
Volume:
20 L, ecobox
Vendor code:
1323204-B20
Volume:
60 L
Vendor code:
1323204-060
1323204-060-01-999
Code:
4014835760165
Volume:
208 L
Vendor code:
1323204-208
1323204-208-01-999
Code:
4014835760189
Volume:
1000 L
Vendor code:
1323204-700
Application instructions
RAVENOL Hydraulikoel TSX 32 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.
Characteristics
- A high and stable viscosity index
- An excellent corrosion protection
- An excellent protection against wear
- A very good air and water separation behaviour to prevent foam formation
- Neutral behaviour towards sealing of plastics
- A very low pour point
| Parameter | Unit | Value | Tests | |
|---|---|---|---|---|
| SAE | 32W |
32W
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | Bosch Rexroth RE 90220, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GM LH-03-1-04, GM LS-2, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sauer-Danfoss 520L0463 |
Bosch Rexroth RE 90220, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GM LH-03-1-04, GM LS-2, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sauer-Danfoss 520L0463
|
||
| specification | AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Cetop RP 91H HV, DIN 51524-3, GB 111118.1 L-HV, ISO 11158 HV, ISO 6743-4 HV, JCMAS HK VG32W, SAE MS 1004, U.S. Steel 127, U.S. Steel 136 |
AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Cetop RP 91H HV, DIN 51524-3, GB 111118.1 L-HV, ISO 11158 HV, ISO 6743-4 HV, JCMAS HK VG32W, SAE MS 1004, U.S. Steel 127, U.S. Steel 136
|
||
| Density at 20 °C | g/cm³ | 845 | EN ISO 12185 |
845
g/cm³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 6.3 | DIN 51562-1 |
6.3
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 32 | DIN 51562-1 |
32
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 152 | DIN ISO 2909 |
152
DIN ISO 2909
|
|
| tbn | mgKOH/g | 0.4 | ASTM D2896 |
0.4
mgKOH/g
ASTM D2896
|
| Approvals | AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, DIN 51524-3, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GB 111118.1 L-HV, GM LH-03-1-04, GM LS-2, ISO 11158 HV, ISO 6743-4 HV, JCMAS HK VG32W, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004, Sauer-Danfoss 520L0463, U.S. Steel 127, U.S. Steel 136 |
AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, DIN 51524-3, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GB 111118.1 L-HV, GM LH-03-1-04, GM LS-2, ISO 11158 HV, ISO 6743-4 HV, JCMAS HK VG32W, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004, Sauer-Danfoss 520L0463, U.S. Steel 127, U.S. Steel 136
|
||
| Recommendations | Bosch Rexroth RE 90220, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GM LH-03-1-04, GM LS-2, Parker Denison HF-0, Parker Denison HF-1, Parker Dension HF-2, Sauer-Danfoss 520L0463 |
Bosch Rexroth RE 90220, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GM LH-03-1-04, GM LS-2, Parker Denison HF-0, Parker Denison HF-1, Parker Dension HF-2, Sauer-Danfoss 520L0463
|
RAVENOL Vakuumpumpenöl ISO VG 150
RAVENOL Vakuumpumpenoel ISO VG 150 is optimum alloyed and high level performance industrial oil with a wide range of applications throughout the industry. It is characterized by good viscosity-temperature behavior, high resistance to aging and reliable corrosion protection. Effective additives ensure even under extreme loads an excellent wear protection. Neutral behavior towards sealing materials.
Compliance with the requirements:
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
SAE: 150
- Available packaging
- Product parameters
Volume:
20 L
Vendor code:
1330708-020
1330708-020-01-999
Volume:
20 L, ecobox
Vendor code:
1330708-B20
Volume:
60 L
Vendor code:
1330708-060
1330708-060-01-999
Volume:
208 L
Vendor code:
1330708-208
1330708-208-01-999
Application instructions
RAVENOL Vakuumpumpenoel ISO VG 150 is suitable for the lubrication of vacuum pumps (rotary vane pumps, diffusion pumps, turbo pumps), where mineral oils are required, as well as for mist lubrication and crankcase.
RAVENOL Vakuumpumpenoel ISO VG 150 oil pumps can be used very well for the lubrication of crankcases. This vacuum pump oil should not be used in systems with silver or silver alloys.
Characteristics
- High performance level
- Very good viscosity-temperature behavior
- High resistance to aging
- Excellent wear protection
- Reliable corrosion protection
- Very good oxidation stability
- Very good demulsification
- Excellent air release, which largely eliminates foam formation
- Neutral from over plastic seals
- Low pour point
| Parameter | Unit | Value | Tests | |
|---|---|---|---|---|
| SAE | 150 |
150
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
|
||
| specification | DIN 51506 VC, DIN 51524-2 |
DIN 51506 VC, DIN 51524-2
|
||
| Density at 20 °C | g/cm³ | 886 | EN ISO 12185 |
886
g/cm³
EN ISO 12185
|
| Color | Light brown | visual |
Light brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 14.6 | DIN 51562-1 |
14.6
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 150 | DIN 51562-1 |
150
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 95 | DIN ISO 2909 |
95
DIN ISO 2909
|
|
| Acid Number TAN | mgKOH/g | 0.4 | ASTM D664 |
0.4
mgKOH/g
ASTM D664
|
| Approvals | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, DIN 51506 VC, DIN 51524-2, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, DIN 51506 VC, DIN 51524-2, Vickers Vane Pump
|
||
| Recommendations | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
|
For lubrication
RAVENOL Vakuumpumpenoel ISO VG 100 is optimum alloyed and high level performance industrial oil with a wide range of applications throughout the industry. It is characterized by good viscosity-temperature behavior, high resistance to aging and reliable corrosion protection. Effective additives ensure even under extreme loads an excellent wear protection. Neutral behavior towards sealing materials.
Compliance with the requirements:
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
SAE: 100
- Available packaging
- Product parameters
Volume:
5 L
Vendor code:
1330707-005
Volume:
20 L, ecobox
Vendor code:
1330707-B20
Volume:
60 L
Vendor code:
1330707-060
Application instructions
RAVENOL Vakuumpumpenoel ISO VG 100 is suitable for the lubrication of vacuum pumps (rotary vane pumps, diffusion pumps, turbo pumps), where mineral oils are required, as well as for mist lubrication and crankcase.
RAVENOL Vakuumpumpenoel ISO VG 100 oil pumps can be used very well for the lubrication of crankcases. This vacuum pump oil should not be used in systems with silver or silver alloys.
Characteristics
- High performance leve
- Very good viscosity-temperature behavior
- High resistance to aging
- Excellent wear protection
- Reliable corrosion protection
- Very good oxidation stability
- Very good demulsification
- Excellent air release, which largely eliminates foam formation
- Neutral from over plastic seals
- Low pour point
| Parameter | Unit | Value | Tests | |
|---|---|---|---|---|
| SAE | 100 |
100
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
|
||
| specification | DIN 51506 VC, DIN 51524-2, ISO 6743-3 DVA, ISO 6743-3 DVC |
DIN 51506 VC, DIN 51524-2, ISO 6743-3 DVA, ISO 6743-3 DVC
|
||
| Density at 20 °C | g/cm³ | 875 | EN ISO 12185 |
875
g/cm³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 11.2 | DIN 51562-1 |
11.2
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 100.2 | DIN 51562-1 |
100.2
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 98 | DIN ISO 2909 |
98
DIN ISO 2909
|
|
| Approvals | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, DIN 51506 VC, DIN 51524-2, ISO 6743-3 DVA, ISO 6743-3 DVC, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, DIN 51506 VC, DIN 51524-2, ISO 6743-3 DVA, ISO 6743-3 DVC, Vickers Vane Pump
|
||
| Recommendations | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
|
RAVENOL Vakuumpumpenoel ISO VG 68
For lubrication
RAVENOL Vakuumpumpenoel ISO VG 68 is optimum alloyed and high level performance industrial oil with a wide range of applications throughout the industry. It is characterized by good viscosity-temperature behavior, high resistance to aging and reliable corrosion protection. Effective additives ensure even under extreme loads an excellent wear protection. Neutral behavior towards sealing materials.
Compliance with the requirements:
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
SAE: 68
- Available packaging
- Product parameters
Volume:
1 L
Vendor code:
1330706-001
Volume:
5 L
Vendor code:
1330706-005
Volume:
20 L
Vendor code:
1330706-020
1330706-020-01-999
Code:
4014835758728
Volume:
20 L, ecobox
Vendor code:
1330706-B20
Volume:
60 L
Vendor code:
1330706-060
1330706-060-01-999
Code:
4014835758766
Volume:
208 L
Vendor code:
1330706-208
1330706-208-01-999
Application instructions
RAVENOL Vakuumpumpenoel ISO VG 68 is suitable for the lubrication of vacuum pumps (rotary vane pumps, diffusion pumps, turbo pumps), where mineral oils are required, as well as for mist lubrication and crankcase.
RAVENOL Vakuumpumpenoel ISO VG 68 oil pumps can be used very well for the lubrication of crankcases. This vacuum pump oil should not be used in systems with silver or silver alloys.
Characteristics
- High performance level
- Very good viscosity-temperature behavior
- High resistance to aging
- Excellent wear protection
- Reliable corrosion protection
- Very good oxidation stability
- Very good demulsification
- Excellent air release, which largely eliminates foam formation
- Neutral from over plastic seals
- Low pour point
| Parameter | Unit | Value | Tests | |
|---|---|---|---|---|
| SAE | 68 |
68
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
|
||
| specification | DIN 51506 VC, DIN 51524-2 |
DIN 51506 VC, DIN 51524-2
|
||
| Density at 20 °C | g/cm³ | 866 | EN ISO 12185 |
866
g/cm³
EN ISO 12185
|
| Color | light yellow | visual |
light yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 9 | DIN 51562-1 |
9
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 68 | DIN 51562-1 |
68
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 106 | DIN ISO 2909 |
106
DIN ISO 2909
|
|
| Approvals | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, DIN 51506 VC, DIN 51524-2, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, DIN 51506 VC, DIN 51524-2, Vickers Vane Pump
|
||
| Recommendations | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
|
RAVENOL Hydraulikoel TSX 15 (HVLP)
Hydraulic oil
RAVENOL Hydraulikoel TSX 15 (HVLP) is high quality multi-grade hydraulic oil type HVLP based on special selected solvent refined basic oils. It is characterised by a high stable viscosity index and a solid corrosion protection. Efficient additives offer an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.
Compliance with the requirements:
AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, GB 111118.1 L-HV, ISO 11158 HV, SAE MS 1004, Sauer-Danfoss 520L0463
SAE: 15
- Available packaging
- Product parameters
Volume:
1 L
Vendor code:
1323202-001
Volume:
5 L
Vendor code:
1323202-005
Volume:
20 L
Vendor code:
1323202-020
Volume:
20 L
Vendor code:
1323202-020-01-999
Volume:
20 L, ecobox
Vendor code:
1323202-B20
Volume:
60 L
Vendor code:
1323202-060
1323202-060-01-999
Code:
4014835759961
Volume:
208 L
Vendor code:
1323202-208
1323202-208-01-999
Code:
4014835759985
Volume:
1000 L
Vendor code:
1323202-700
Application instructions
RAVENOL Hydraulikoel TSX 15 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.
Characteristics
- A high and stable viscosity index
- An excellent corrosion protection
- An excellent protection against wear
- A very good air and water separation behaviour to prevent foam formation
- Neutral behaviour towards sealing of plastics
- A very low pour point
| Parameter | Unit | Value | Tests | |
|---|---|---|---|---|
| SAE | 15 |
15
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, GB 111118.1 L-HV, ISO 11158 HV, SAE MS 1004, Sauer-Danfoss 520L0463 |
AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, GB 111118.1 L-HV, ISO 11158 HV, SAE MS 1004, Sauer-Danfoss 520L0463
|
||
| specification | DIN 51524-3, ISO 6743-4 HV |
DIN 51524-3, ISO 6743-4 HV
|
||
| Density at 20 °C | g/cm³ | 839.2 | EN ISO 12185 |
839.2
g/cm³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 3.9 | DIN 51562-1 |
3.9
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 15.1 | DIN 51562-1 |
15.1
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 166 | DIN ISO 2909 |
166
DIN ISO 2909
|
|
| Approvals | AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, DIN 51524-3, GB 111118.1 L-HV, ISO 11158 HV, ISO 6743-4 HV, SAE MS 1004, Sauer-Danfoss 520L0463 |
AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, DIN 51524-3, GB 111118.1 L-HV, ISO 11158 HV, ISO 6743-4 HV, SAE MS 1004, Sauer-Danfoss 520L0463
|
||
| Recommendations | AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, CETOP RP 91H HV, GB 111118.1 L-HV, ISO 11158 HV, SAE MS1004, Sauer-Danfoss 520L0463 |
AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, CETOP RP 91H HV, GB 111118.1 L-HV, ISO 11158 HV, SAE MS1004, Sauer-Danfoss 520L0463
|
RAVENOL Hydraulikoel TSX 32 (HVLP)
For hydraulics
RAVENOL Hydraulikoel TSX 32 (HVLP) is high quality multi-grade hydraulic oil type HVLP based on special selected solvent refined basic oils. It is characterised by a high stable viscosity index and a solid corrosion protection. Efficient additives offer an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.
Compliance with the requirements:
Bosch Rexroth RE 90220, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GM LH-03-1-04, GM LS-2, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sauer-Danfoss 520L0463
SAE: 32W
- Available packaging
- Product parameters
Volume:
1 L
Vendor code:
1323204-001
Volume:
5 L
Vendor code:
1323204-005
Volume:
20 L
Vendor code:
1323204-020
1323204-020-01-999
Code:
4014835760127
Volume:
20 L, ecobox
Vendor code:
1323204-B20
Volume:
60 L
Vendor code:
1323204-060
1323204-060-01-999
Code:
4014835760165
Volume:
208 L
Vendor code:
1323204-208
1323204-208-01-999
Code:
4014835760189
Volume:
1000 L
Vendor code:
1323204-700
Application instructions
RAVENOL Hydraulikoel TSX 32 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.
Characteristics
- A high and stable viscosity index
- An excellent corrosion protection
- An excellent protection against wear
- A very good air and water separation behaviour to prevent foam formation
- Neutral behaviour towards sealing of plastics
- A very low pour point
| Parameter | Unit | Value | Tests | |
|---|---|---|---|---|
| SAE | 32W |
32W
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | Bosch Rexroth RE 90220, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GM LH-03-1-04, GM LS-2, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sauer-Danfoss 520L0463 |
Bosch Rexroth RE 90220, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GM LH-03-1-04, GM LS-2, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sauer-Danfoss 520L0463
|
||
| specification | AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Cetop RP 91H HV, DIN 51524-3, GB 111118.1 L-HV, ISO 11158 HV, ISO 6743-4 HV, JCMAS HK VG32W, SAE MS 1004, U.S. Steel 127, U.S. Steel 136 |
AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Cetop RP 91H HV, DIN 51524-3, GB 111118.1 L-HV, ISO 11158 HV, ISO 6743-4 HV, JCMAS HK VG32W, SAE MS 1004, U.S. Steel 127, U.S. Steel 136
|
||
| Density at 20 °C | g/cm³ | 845 | EN ISO 12185 |
845
g/cm³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 6.3 | DIN 51562-1 |
6.3
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 32 | DIN 51562-1 |
32
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 152 | DIN ISO 2909 |
152
DIN ISO 2909
|
|
| tbn | mgKOH/g | 0.4 | ASTM D2896 |
0.4
mgKOH/g
ASTM D2896
|
| Approvals | AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, DIN 51524-3, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GB 111118.1 L-HV, GM LH-03-1-04, GM LS-2, ISO 11158 HV, ISO 6743-4 HV, JCMAS HK VG32W, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004, Sauer-Danfoss 520L0463, U.S. Steel 127, U.S. Steel 136 |
AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, DIN 51524-3, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GB 111118.1 L-HV, GM LH-03-1-04, GM LS-2, ISO 11158 HV, ISO 6743-4 HV, JCMAS HK VG32W, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004, Sauer-Danfoss 520L0463, U.S. Steel 127, U.S. Steel 136
|
||
| Recommendations | Bosch Rexroth RE 90220, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GM LH-03-1-04, GM LS-2, Parker Denison HF-0, Parker Denison HF-1, Parker Dension HF-2, Sauer-Danfoss 520L0463 |
Bosch Rexroth RE 90220, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GM LH-03-1-04, GM LS-2, Parker Denison HF-0, Parker Denison HF-1, Parker Dension HF-2, Sauer-Danfoss 520L0463
|
RAVENOL Vakuumpumpenöl ISO VG 150
RAVENOL Vakuumpumpenoel ISO VG 150 is optimum alloyed and high level performance industrial oil with a wide range of applications throughout the industry. It is characterized by good viscosity-temperature behavior, high resistance to aging and reliable corrosion protection. Effective additives ensure even under extreme loads an excellent wear protection. Neutral behavior towards sealing materials.
Compliance with the requirements:
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
SAE: 150
- Available packaging
- Product parameters
Volume:
20 L
Vendor code:
1330708-020
1330708-020-01-999
Volume:
20 L, ecobox
Vendor code:
1330708-B20
Volume:
60 L
Vendor code:
1330708-060
1330708-060-01-999
Volume:
208 L
Vendor code:
1330708-208
1330708-208-01-999
Application instructions
RAVENOL Vakuumpumpenoel ISO VG 150 is suitable for the lubrication of vacuum pumps (rotary vane pumps, diffusion pumps, turbo pumps), where mineral oils are required, as well as for mist lubrication and crankcase.
RAVENOL Vakuumpumpenoel ISO VG 150 oil pumps can be used very well for the lubrication of crankcases. This vacuum pump oil should not be used in systems with silver or silver alloys.
Characteristics
- High performance level
- Very good viscosity-temperature behavior
- High resistance to aging
- Excellent wear protection
- Reliable corrosion protection
- Very good oxidation stability
- Very good demulsification
- Excellent air release, which largely eliminates foam formation
- Neutral from over plastic seals
- Low pour point
| Parameter | Unit | Value | Tests | |
|---|---|---|---|---|
| SAE | 150 |
150
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
|
||
| specification | DIN 51506 VC, DIN 51524-2 |
DIN 51506 VC, DIN 51524-2
|
||
| Density at 20 °C | g/cm³ | 886 | EN ISO 12185 |
886
g/cm³
EN ISO 12185
|
| Color | Light brown | visual |
Light brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 14.6 | DIN 51562-1 |
14.6
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 150 | DIN 51562-1 |
150
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 95 | DIN ISO 2909 |
95
DIN ISO 2909
|
|
| Acid Number TAN | mgKOH/g | 0.4 | ASTM D664 |
0.4
mgKOH/g
ASTM D664
|
| Approvals | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, DIN 51506 VC, DIN 51524-2, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, DIN 51506 VC, DIN 51524-2, Vickers Vane Pump
|
||
| Recommendations | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
|
