RAVENOL Hydraulikoel HLP-D 46
For construction equipment
RAVENOL Hydraulikoel HLP-D 46 is detergent hydraulic oil with good net and cleaning effect.
Compliance with the requirements:
Daimler DBL 6721, MAN N 698, Parker Denison HF-0
SAE: 46
- Available packaging
- Product parameters
Volume:
20 L
Vendor code:
1323305-020
Volume:
20 L, ecobox
Vendor code:
1323305-B20
Volume:
60 L
Vendor code:
1323305-060
Volume:
208 L
Vendor code:
1323305-208
1323305-208-01-999
Code:
4014835760783
RAVENOL Hydraulikoel HLP-D 46 is designed with selected base oils with additives to prevent corrosion, wear and friction.
RAVENOL Hydraulikoel HLP-D 46 also contains detergent and dispersing agents, which always provide for a clean hydraulic system. These additives dissolve contaminants, hold them in suspension and enabling the cleaning of contaminated hydraulic systems. The functional elements of a hydraulic system thereby remain free of deposits and bonds. This will emulsified penetrating water and ensure trouble-free operation of the hydraulic system.
Application instructions
RAVENOL Hydraulikoel HLP-D 46 is for use in agriculture hydraulic systems, construction machinery, cement factories, foundries, and electro-plate clutches. It can also be used as functional test oil, inlet oil for aggregates and machinery, textile machinery and machine tools.
Characteristics
- High aging resistance and high corrosion protection
- Good air release
- Excellent wear protection and proper conduct foam
- Very good viscosity-temperature behaviour
- neutral behaviour towards sealing materials
- Extremely good detergent and dispersant characteristics
- Excellent corrosion protection even at the ingress of wetness
| Parameter | Unit | Value | Tests | |
|---|---|---|---|---|
| SAE | 46 |
46
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | Daimler DBL 6721, MAN N 698, Parker Denison HF-0 |
Daimler DBL 6721, MAN N 698, Parker Denison HF-0
|
||
| specification | DIN 51524-2 |
DIN 51524-2
|
||
| Density at 20 °C | g/cm³ | 863 | EN ISO 12185 |
863
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 7.2 | DIN 51562-1 |
7.2
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 47.3 | DIN 51562-1 |
47.3
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 111 | DIN ISO 2909 |
111
DIN ISO 2909
|
|
| Approvals | DIN 51524-2, Daimler DBL 6721, MAN N 698, Parker Denison HF-0 |
DIN 51524-2, Daimler DBL 6721, MAN N 698, Parker Denison HF-0
|
||
| Recommendations | Daimler DBL 6721, MAN N 698, Parker Denison HF-0 |
Daimler DBL 6721, MAN N 698, Parker Denison HF-0
|

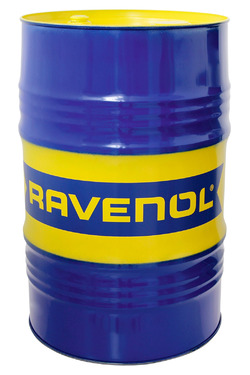

RAVENOL Hydraulikoel HLP-D 68
For hydraulics
RAVENOL Hydraulikoel HLP-D 68 is detergent hydraulic oil with good net and cleaning effect.
Compliance with the requirements:
Daimler DBL 6721, MAN N 698, Parker Denison HF-0
SAE: 68
- Available packaging
- Product parameters
Volume:
60 L
Vendor code:
1323306-060
1323306-060-01-999
RAVENOL Hydraulikoel HLP-D 68 is designed with selected base oils with additives to prevent corrosion, wear and friction.
RAVENOL Hydraulikoel HLP-D 68 also contains detergent and dispersing agents, which always provide for a clean hydraulic system. These additives dissolve contaminants, hold them in suspension and enabling the cleaning of contaminated hydraulic systems. The functional elements of a hydraulic system thereby remain free of deposits and bonds. This will emulsified penetrating water and ensure trouble-free operation of the hydraulic system.
Application instructions
RAVENOL Hydraulikoel HLP-D 68 is for use in agriculture hydraulic systems, construction machinery, cement factories, foundries, and electro-plate clutches. It can also be used as functional test oil, inlet oil for aggregates and machinery, textile machinery and machine tools.
Characteristics
- High aging resistance and high corrosion protection
- Good air release
- Excellent wear protection and proper conduct foam
- Very good viscosity-temperature behaviour
- neutral behaviour towards sealing materials
- Extremely good detergent and dispersant characteristics
- Excellent corrosion protection even at the ingress of wetness
| Parameter | Unit | Value | Tests | |
|---|---|---|---|---|
| SAE | 68 |
68
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | Daimler DBL 6721, MAN N 698, Parker Denison HF-0 |
Daimler DBL 6721, MAN N 698, Parker Denison HF-0
|
||
| specification | DIN 51524-2 |
DIN 51524-2
|
||
| Density at 20 °C | g/cm³ | 869 | EN ISO 12185 |
869
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 9.4 | DIN 51562-1 |
9.4
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 69.2 | DIN 51562-1 |
69.2
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 113 | DIN ISO 2909 |
113
DIN ISO 2909
|
|
| Approvals | DIN 51524-2, Daimler DBL 6721, MAN N 698, Parker Denison HF-0 |
DIN 51524-2, Daimler DBL 6721, MAN N 698, Parker Denison HF-0
|
||
| Recommendations | Daimler DBL 6721, MAN N 698, Parker Denison HF-0 |
Daimler DBL 6721, MAN N 698, Parker Denison HF-0
|
RAVENOL Hydraulikoel HLP-D 32
For construction equipment
RAVENOL Hydraulikoel HLP-D 32 is detergent hydraulic oil with good net and cleaning effect.
Compliance with the requirements:
Daimler DBL 6721, MAN N 698, Müller , Parker Denison HF-0
SAE: 32W
- Available packaging
- Product parameters
Volume:
5 L
Vendor code:
1323304-005
Volume:
20 L
Vendor code:
1323304-020
Volume:
20 L, ecobox
Vendor code:
1323304-B20
1323304-B20-01-888
Volume:
60 L
Vendor code:
1323304-060
Volume:
208 L
Vendor code:
1323304-208
1323304-208-01-999
Code:
4014835760684
Volume:
1000 L
Vendor code:
1323304-700
RAVENOL Hydraulikoel HLP-D 32 is designed with selected base oils with additives to prevent corrosion, wear and friction.
RAVENOL Hydraulikoel HLP-D 32 also contains detergent and dispersing agents, which always provide for a clean hydraulic system. These additives dissolve contaminants, hold them in suspension and enabling the cleaning of contaminated hydraulic systems. The functional elements of a hydraulic system thereby remain free of deposits and bonds. This will emulsified penetrating water and ensure trouble-free operation of the hydraulic system.
RAVENOL Hydraulikoel HLP-D 32 is zinc and ash-free.
Application instructions
RAVENOL Hydraulikoel HLP-D 32 is for use in agriculture hydraulic systems, construction machinery, cement factories, foundries, and electro-plate clutches. It can also be used as functional test oil, inlet oil for aggregates and machinery, textile machinery and machine tools.
Characteristics
- High aging resistance and high corrosion protection
- Good air release
- Excellent wear protection and proper conduct foam
- Very good viscosity-temperature behaviour
- neutral behaviour towards sealing materials
- Extremely good detergent and dispersant characteristics
- Excellent corrosion protection even at the ingress of wetness
- zinc and ash-free
| Parameter | Unit | Value | Tests | |
|---|---|---|---|---|
| SAE | 32W |
32W
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | Daimler DBL 6721, MAN N 698, Müller , Parker Denison HF-0 |
Daimler DBL 6721, MAN N 698, Müller , Parker Denison HF-0
|
||
| specification | AFNOR NF E 48-603 HM, DIN 51524-2, ISO 11158 HM, ISO 6743-4 HM, JCMAS HK, SAE MS 1004 HM, SEB 181.222, U.S. Steel 127, U.S. Steel 136, VDMA 24318 |
AFNOR NF E 48-603 HM, DIN 51524-2, ISO 11158 HM, ISO 6743-4 HM, JCMAS HK, SAE MS 1004 HM, SEB 181.222, U.S. Steel 127, U.S. Steel 136, VDMA 24318
|
||
| Density at 20 °C | g/cm³ | 865 | EN ISO 12185 |
865
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 5.5 | DIN 51562-1 |
5.5
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 31.8 | DIN 51562-1 |
31.8
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 107 | DIN ISO 2909 |
107
DIN ISO 2909
|
|
| Approvals | AFNOR NF E 48-603 HM, DIN 51524-2, Daimler DBL 6721, ISO 11158 HM, ISO 6743-4 HM, JCMAS HK, MAN N 698, Müller , Parker Denison HF-0, SAE MS 1004 HM, SEB 181.222, U.S. Steel 127, U.S. Steel 136, VDMA 24318 |
AFNOR NF E 48-603 HM, DIN 51524-2, Daimler DBL 6721, ISO 11158 HM, ISO 6743-4 HM, JCMAS HK, MAN N 698, Müller , Parker Denison HF-0, SAE MS 1004 HM, SEB 181.222, U.S. Steel 127, U.S. Steel 136, VDMA 24318
|
||
| Recommendations | Daimler DBL 6721, MAN N 698, Müller Weingarten, Parker Denison HF-0 |
Daimler DBL 6721, MAN N 698, Müller Weingarten, Parker Denison HF-0
|
RAVENOL Hydraulikoel HLP-D 22
For construction equipment
RAVENOL Hydraulikoel HLP-D 22 is detergent hydraulic oil with good net and cleaning effect.
Compliance with the requirements:
Daimler DBL 6721, MAN N 698, Parker Denison HF-0
SAE: 22
- Available packaging
- Product parameters
Volume:
5 L
Vendor code:
1323303-005
Volume:
20 L
Vendor code:
1323303-020
1323303-020-01-999
Code:
4014835760523
Volume:
20 L, ecobox
Vendor code:
1323303-B20
Volume:
208 L
Vendor code:
1323303-208
1323303-208-01-999
Code:
4014835760585
Volume:
1000 L
Vendor code:
1323303-700
RAVENOL Hydraulikoel HLP-D 22 is designed with selected base oils with additives to prevent corrosion, wear and friction.
RAVENOL Hydraulikoel HLP-D 22 also contains detergent and dispersing agents, which always provide for a clean hydraulic system. These additives dissolve contaminants, hold them in suspension and enabling the cleaning of contaminated hydraulic systems. The functional elements of a hydraulic system thereby remain free of deposits and bonds. This will emulsified penetrating water and ensure trouble-free operation of the hydraulic system.
Application instructions
RAVENOL Hydraulikoel HLP-D 22 is for use in agriculture hydraulic systems, construction machinery, cement factories, foundries, and electro-plate clutches. It can also be used as functional test oil, inlet oil for aggregates and machinery, textile machinery and machine tools.
Characteristics
- High aging resistance and high corrosion protection
- Good air release
- Excellent wear protection and proper conduct foam
- Very good viscosity-temperature behaviour
- neutral behaviour towards sealing materials
- Extremely good detergent and dispersant characteristics
- Excellent corrosion protection even at the ingress of wetness
| Parameter | Unit | Value | Tests | |
|---|---|---|---|---|
| SAE | 22 |
22
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | Daimler DBL 6721, MAN N 698, Parker Denison HF-0 |
Daimler DBL 6721, MAN N 698, Parker Denison HF-0
|
||
| specification | DIN 51524-2 |
DIN 51524-2
|
||
| Density at 20 °C | g/cm³ | 849 | EN ISO 12185 |
849
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 4.6 | DIN 51562-1 |
4.6
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 23 | DIN 51562-1 |
23
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 120 | DIN ISO 2909 |
120
DIN ISO 2909
|
|
| Approvals | DIN 51524-2, Daimler DBL 6721, MAN N 698, Parker Denison HF-0 |
DIN 51524-2, Daimler DBL 6721, MAN N 698, Parker Denison HF-0
|
||
| Recommendations | Daimler DBL 6721, MAN N 698, Parker Denison HF-0 |
Daimler DBL 6721, MAN N 698, Parker Denison HF-0
|
RAVENOL Hydraulikoel HLP-D 46
For construction equipment
RAVENOL Hydraulikoel HLP-D 46 is detergent hydraulic oil with good net and cleaning effect.
Compliance with the requirements:
Daimler DBL 6721, MAN N 698, Parker Denison HF-0
SAE: 46
- Available packaging
- Product parameters
Volume:
20 L
Vendor code:
1323305-020
Volume:
20 L, ecobox
Vendor code:
1323305-B20
Volume:
60 L
Vendor code:
1323305-060
Volume:
208 L
Vendor code:
1323305-208
1323305-208-01-999
Code:
4014835760783
RAVENOL Hydraulikoel HLP-D 46 is designed with selected base oils with additives to prevent corrosion, wear and friction.
RAVENOL Hydraulikoel HLP-D 46 also contains detergent and dispersing agents, which always provide for a clean hydraulic system. These additives dissolve contaminants, hold them in suspension and enabling the cleaning of contaminated hydraulic systems. The functional elements of a hydraulic system thereby remain free of deposits and bonds. This will emulsified penetrating water and ensure trouble-free operation of the hydraulic system.
Application instructions
RAVENOL Hydraulikoel HLP-D 46 is for use in agriculture hydraulic systems, construction machinery, cement factories, foundries, and electro-plate clutches. It can also be used as functional test oil, inlet oil for aggregates and machinery, textile machinery and machine tools.
Characteristics
- High aging resistance and high corrosion protection
- Good air release
- Excellent wear protection and proper conduct foam
- Very good viscosity-temperature behaviour
- neutral behaviour towards sealing materials
- Extremely good detergent and dispersant characteristics
- Excellent corrosion protection even at the ingress of wetness
| Parameter | Unit | Value | Tests | |
|---|---|---|---|---|
| SAE | 46 |
46
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | Daimler DBL 6721, MAN N 698, Parker Denison HF-0 |
Daimler DBL 6721, MAN N 698, Parker Denison HF-0
|
||
| specification | DIN 51524-2 |
DIN 51524-2
|
||
| Density at 20 °C | g/cm³ | 863 | EN ISO 12185 |
863
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 7.2 | DIN 51562-1 |
7.2
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 47.3 | DIN 51562-1 |
47.3
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 111 | DIN ISO 2909 |
111
DIN ISO 2909
|
|
| Approvals | DIN 51524-2, Daimler DBL 6721, MAN N 698, Parker Denison HF-0 |
DIN 51524-2, Daimler DBL 6721, MAN N 698, Parker Denison HF-0
|
||
| Recommendations | Daimler DBL 6721, MAN N 698, Parker Denison HF-0 |
Daimler DBL 6721, MAN N 698, Parker Denison HF-0
|
RAVENOL Hydraulikoel HLP-D 68
For hydraulics
RAVENOL Hydraulikoel HLP-D 68 is detergent hydraulic oil with good net and cleaning effect.
Compliance with the requirements:
Daimler DBL 6721, MAN N 698, Parker Denison HF-0
SAE: 68
- Available packaging
- Product parameters
Volume:
60 L
Vendor code:
1323306-060
1323306-060-01-999
RAVENOL Hydraulikoel HLP-D 68 is designed with selected base oils with additives to prevent corrosion, wear and friction.
RAVENOL Hydraulikoel HLP-D 68 also contains detergent and dispersing agents, which always provide for a clean hydraulic system. These additives dissolve contaminants, hold them in suspension and enabling the cleaning of contaminated hydraulic systems. The functional elements of a hydraulic system thereby remain free of deposits and bonds. This will emulsified penetrating water and ensure trouble-free operation of the hydraulic system.
Application instructions
RAVENOL Hydraulikoel HLP-D 68 is for use in agriculture hydraulic systems, construction machinery, cement factories, foundries, and electro-plate clutches. It can also be used as functional test oil, inlet oil for aggregates and machinery, textile machinery and machine tools.
Characteristics
- High aging resistance and high corrosion protection
- Good air release
- Excellent wear protection and proper conduct foam
- Very good viscosity-temperature behaviour
- neutral behaviour towards sealing materials
- Extremely good detergent and dispersant characteristics
- Excellent corrosion protection even at the ingress of wetness
| Parameter | Unit | Value | Tests | |
|---|---|---|---|---|
| SAE | 68 |
68
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | Daimler DBL 6721, MAN N 698, Parker Denison HF-0 |
Daimler DBL 6721, MAN N 698, Parker Denison HF-0
|
||
| specification | DIN 51524-2 |
DIN 51524-2
|
||
| Density at 20 °C | g/cm³ | 869 | EN ISO 12185 |
869
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 9.4 | DIN 51562-1 |
9.4
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 69.2 | DIN 51562-1 |
69.2
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 113 | DIN ISO 2909 |
113
DIN ISO 2909
|
|
| Approvals | DIN 51524-2, Daimler DBL 6721, MAN N 698, Parker Denison HF-0 |
DIN 51524-2, Daimler DBL 6721, MAN N 698, Parker Denison HF-0
|
||
| Recommendations | Daimler DBL 6721, MAN N 698, Parker Denison HF-0 |
Daimler DBL 6721, MAN N 698, Parker Denison HF-0
|
RAVENOL Hydraulikoel HLP-D 32
For construction equipment
RAVENOL Hydraulikoel HLP-D 32 is detergent hydraulic oil with good net and cleaning effect.
Compliance with the requirements:
Daimler DBL 6721, MAN N 698, Müller , Parker Denison HF-0
SAE: 32W
- Available packaging
- Product parameters
Volume:
5 L
Vendor code:
1323304-005
Volume:
20 L
Vendor code:
1323304-020
Volume:
20 L, ecobox
Vendor code:
1323304-B20
1323304-B20-01-888
Volume:
60 L
Vendor code:
1323304-060
Volume:
208 L
Vendor code:
1323304-208
1323304-208-01-999
Code:
4014835760684
Volume:
1000 L
Vendor code:
1323304-700
RAVENOL Hydraulikoel HLP-D 32 is designed with selected base oils with additives to prevent corrosion, wear and friction.
RAVENOL Hydraulikoel HLP-D 32 also contains detergent and dispersing agents, which always provide for a clean hydraulic system. These additives dissolve contaminants, hold them in suspension and enabling the cleaning of contaminated hydraulic systems. The functional elements of a hydraulic system thereby remain free of deposits and bonds. This will emulsified penetrating water and ensure trouble-free operation of the hydraulic system.
RAVENOL Hydraulikoel HLP-D 32 is zinc and ash-free.
Application instructions
RAVENOL Hydraulikoel HLP-D 32 is for use in agriculture hydraulic systems, construction machinery, cement factories, foundries, and electro-plate clutches. It can also be used as functional test oil, inlet oil for aggregates and machinery, textile machinery and machine tools.
Characteristics
- High aging resistance and high corrosion protection
- Good air release
- Excellent wear protection and proper conduct foam
- Very good viscosity-temperature behaviour
- neutral behaviour towards sealing materials
- Extremely good detergent and dispersant characteristics
- Excellent corrosion protection even at the ingress of wetness
- zinc and ash-free
| Parameter | Unit | Value | Tests | |
|---|---|---|---|---|
| SAE | 32W |
32W
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | Daimler DBL 6721, MAN N 698, Müller , Parker Denison HF-0 |
Daimler DBL 6721, MAN N 698, Müller , Parker Denison HF-0
|
||
| specification | AFNOR NF E 48-603 HM, DIN 51524-2, ISO 11158 HM, ISO 6743-4 HM, JCMAS HK, SAE MS 1004 HM, SEB 181.222, U.S. Steel 127, U.S. Steel 136, VDMA 24318 |
AFNOR NF E 48-603 HM, DIN 51524-2, ISO 11158 HM, ISO 6743-4 HM, JCMAS HK, SAE MS 1004 HM, SEB 181.222, U.S. Steel 127, U.S. Steel 136, VDMA 24318
|
||
| Density at 20 °C | g/cm³ | 865 | EN ISO 12185 |
865
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 5.5 | DIN 51562-1 |
5.5
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 31.8 | DIN 51562-1 |
31.8
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 107 | DIN ISO 2909 |
107
DIN ISO 2909
|
|
| Approvals | AFNOR NF E 48-603 HM, DIN 51524-2, Daimler DBL 6721, ISO 11158 HM, ISO 6743-4 HM, JCMAS HK, MAN N 698, Müller , Parker Denison HF-0, SAE MS 1004 HM, SEB 181.222, U.S. Steel 127, U.S. Steel 136, VDMA 24318 |
AFNOR NF E 48-603 HM, DIN 51524-2, Daimler DBL 6721, ISO 11158 HM, ISO 6743-4 HM, JCMAS HK, MAN N 698, Müller , Parker Denison HF-0, SAE MS 1004 HM, SEB 181.222, U.S. Steel 127, U.S. Steel 136, VDMA 24318
|
||
| Recommendations | Daimler DBL 6721, MAN N 698, Müller Weingarten, Parker Denison HF-0 |
Daimler DBL 6721, MAN N 698, Müller Weingarten, Parker Denison HF-0
|
RAVENOL Hydraulikoel HLP-D 22
For construction equipment
RAVENOL Hydraulikoel HLP-D 22 is detergent hydraulic oil with good net and cleaning effect.
Compliance with the requirements:
Daimler DBL 6721, MAN N 698, Parker Denison HF-0
SAE: 22
- Available packaging
- Product parameters
Volume:
5 L
Vendor code:
1323303-005
Volume:
20 L
Vendor code:
1323303-020
1323303-020-01-999
Code:
4014835760523
Volume:
20 L, ecobox
Vendor code:
1323303-B20
Volume:
208 L
Vendor code:
1323303-208
1323303-208-01-999
Code:
4014835760585
Volume:
1000 L
Vendor code:
1323303-700
RAVENOL Hydraulikoel HLP-D 22 is designed with selected base oils with additives to prevent corrosion, wear and friction.
RAVENOL Hydraulikoel HLP-D 22 also contains detergent and dispersing agents, which always provide for a clean hydraulic system. These additives dissolve contaminants, hold them in suspension and enabling the cleaning of contaminated hydraulic systems. The functional elements of a hydraulic system thereby remain free of deposits and bonds. This will emulsified penetrating water and ensure trouble-free operation of the hydraulic system.
Application instructions
RAVENOL Hydraulikoel HLP-D 22 is for use in agriculture hydraulic systems, construction machinery, cement factories, foundries, and electro-plate clutches. It can also be used as functional test oil, inlet oil for aggregates and machinery, textile machinery and machine tools.
Characteristics
- High aging resistance and high corrosion protection
- Good air release
- Excellent wear protection and proper conduct foam
- Very good viscosity-temperature behaviour
- neutral behaviour towards sealing materials
- Extremely good detergent and dispersant characteristics
- Excellent corrosion protection even at the ingress of wetness
| Parameter | Unit | Value | Tests | |
|---|---|---|---|---|
| SAE | 22 |
22
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | Daimler DBL 6721, MAN N 698, Parker Denison HF-0 |
Daimler DBL 6721, MAN N 698, Parker Denison HF-0
|
||
| specification | DIN 51524-2 |
DIN 51524-2
|
||
| Density at 20 °C | g/cm³ | 849 | EN ISO 12185 |
849
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 4.6 | DIN 51562-1 |
4.6
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 23 | DIN 51562-1 |
23
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 120 | DIN ISO 2909 |
120
DIN ISO 2909
|
|
| Approvals | DIN 51524-2, Daimler DBL 6721, MAN N 698, Parker Denison HF-0 |
DIN 51524-2, Daimler DBL 6721, MAN N 698, Parker Denison HF-0
|
||
| Recommendations | Daimler DBL 6721, MAN N 698, Parker Denison HF-0 |
Daimler DBL 6721, MAN N 698, Parker Denison HF-0
|
RAVENOL Hydraulikoel HLP-D 46
For construction equipment
RAVENOL Hydraulikoel HLP-D 46 is detergent hydraulic oil with good net and cleaning effect.
Compliance with the requirements:
Daimler DBL 6721, MAN N 698, Parker Denison HF-0
SAE: 46
- Available packaging
- Product parameters
Volume:
20 L
Vendor code:
1323305-020
Volume:
20 L, ecobox
Vendor code:
1323305-B20
Volume:
60 L
Vendor code:
1323305-060
Volume:
208 L
Vendor code:
1323305-208
1323305-208-01-999
Code:
4014835760783
RAVENOL Hydraulikoel HLP-D 46 is designed with selected base oils with additives to prevent corrosion, wear and friction.
RAVENOL Hydraulikoel HLP-D 46 also contains detergent and dispersing agents, which always provide for a clean hydraulic system. These additives dissolve contaminants, hold them in suspension and enabling the cleaning of contaminated hydraulic systems. The functional elements of a hydraulic system thereby remain free of deposits and bonds. This will emulsified penetrating water and ensure trouble-free operation of the hydraulic system.
Application instructions
RAVENOL Hydraulikoel HLP-D 46 is for use in agriculture hydraulic systems, construction machinery, cement factories, foundries, and electro-plate clutches. It can also be used as functional test oil, inlet oil for aggregates and machinery, textile machinery and machine tools.
Characteristics
- High aging resistance and high corrosion protection
- Good air release
- Excellent wear protection and proper conduct foam
- Very good viscosity-temperature behaviour
- neutral behaviour towards sealing materials
- Extremely good detergent and dispersant characteristics
- Excellent corrosion protection even at the ingress of wetness
| Parameter | Unit | Value | Tests | |
|---|---|---|---|---|
| SAE | 46 |
46
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | Daimler DBL 6721, MAN N 698, Parker Denison HF-0 |
Daimler DBL 6721, MAN N 698, Parker Denison HF-0
|
||
| specification | DIN 51524-2 |
DIN 51524-2
|
||
| Density at 20 °C | g/cm³ | 863 | EN ISO 12185 |
863
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 7.2 | DIN 51562-1 |
7.2
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 47.3 | DIN 51562-1 |
47.3
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 111 | DIN ISO 2909 |
111
DIN ISO 2909
|
|
| Approvals | DIN 51524-2, Daimler DBL 6721, MAN N 698, Parker Denison HF-0 |
DIN 51524-2, Daimler DBL 6721, MAN N 698, Parker Denison HF-0
|
||
| Recommendations | Daimler DBL 6721, MAN N 698, Parker Denison HF-0 |
Daimler DBL 6721, MAN N 698, Parker Denison HF-0
|
RAVENOL Hydraulikoel HLP-D 68
For hydraulics
RAVENOL Hydraulikoel HLP-D 68 is detergent hydraulic oil with good net and cleaning effect.
Compliance with the requirements:
Daimler DBL 6721, MAN N 698, Parker Denison HF-0
SAE: 68
- Available packaging
- Product parameters
Volume:
60 L
Vendor code:
1323306-060
1323306-060-01-999
RAVENOL Hydraulikoel HLP-D 68 is designed with selected base oils with additives to prevent corrosion, wear and friction.
RAVENOL Hydraulikoel HLP-D 68 also contains detergent and dispersing agents, which always provide for a clean hydraulic system. These additives dissolve contaminants, hold them in suspension and enabling the cleaning of contaminated hydraulic systems. The functional elements of a hydraulic system thereby remain free of deposits and bonds. This will emulsified penetrating water and ensure trouble-free operation of the hydraulic system.
Application instructions
RAVENOL Hydraulikoel HLP-D 68 is for use in agriculture hydraulic systems, construction machinery, cement factories, foundries, and electro-plate clutches. It can also be used as functional test oil, inlet oil for aggregates and machinery, textile machinery and machine tools.
Characteristics
- High aging resistance and high corrosion protection
- Good air release
- Excellent wear protection and proper conduct foam
- Very good viscosity-temperature behaviour
- neutral behaviour towards sealing materials
- Extremely good detergent and dispersant characteristics
- Excellent corrosion protection even at the ingress of wetness
| Parameter | Unit | Value | Tests | |
|---|---|---|---|---|
| SAE | 68 |
68
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | Daimler DBL 6721, MAN N 698, Parker Denison HF-0 |
Daimler DBL 6721, MAN N 698, Parker Denison HF-0
|
||
| specification | DIN 51524-2 |
DIN 51524-2
|
||
| Density at 20 °C | g/cm³ | 869 | EN ISO 12185 |
869
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 9.4 | DIN 51562-1 |
9.4
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 69.2 | DIN 51562-1 |
69.2
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 113 | DIN ISO 2909 |
113
DIN ISO 2909
|
|
| Approvals | DIN 51524-2, Daimler DBL 6721, MAN N 698, Parker Denison HF-0 |
DIN 51524-2, Daimler DBL 6721, MAN N 698, Parker Denison HF-0
|
||
| Recommendations | Daimler DBL 6721, MAN N 698, Parker Denison HF-0 |
Daimler DBL 6721, MAN N 698, Parker Denison HF-0
|
RAVENOL Hydraulikoel HLP-D 32
For construction equipment
RAVENOL Hydraulikoel HLP-D 32 is detergent hydraulic oil with good net and cleaning effect.
Compliance with the requirements:
Daimler DBL 6721, MAN N 698, Müller , Parker Denison HF-0
SAE: 32W
- Available packaging
- Product parameters
Volume:
5 L
Vendor code:
1323304-005
Volume:
20 L
Vendor code:
1323304-020
Volume:
20 L, ecobox
Vendor code:
1323304-B20
1323304-B20-01-888
Volume:
60 L
Vendor code:
1323304-060
Volume:
208 L
Vendor code:
1323304-208
1323304-208-01-999
Code:
4014835760684
Volume:
1000 L
Vendor code:
1323304-700
RAVENOL Hydraulikoel HLP-D 32 is designed with selected base oils with additives to prevent corrosion, wear and friction.
RAVENOL Hydraulikoel HLP-D 32 also contains detergent and dispersing agents, which always provide for a clean hydraulic system. These additives dissolve contaminants, hold them in suspension and enabling the cleaning of contaminated hydraulic systems. The functional elements of a hydraulic system thereby remain free of deposits and bonds. This will emulsified penetrating water and ensure trouble-free operation of the hydraulic system.
RAVENOL Hydraulikoel HLP-D 32 is zinc and ash-free.
Application instructions
RAVENOL Hydraulikoel HLP-D 32 is for use in agriculture hydraulic systems, construction machinery, cement factories, foundries, and electro-plate clutches. It can also be used as functional test oil, inlet oil for aggregates and machinery, textile machinery and machine tools.
Characteristics
- High aging resistance and high corrosion protection
- Good air release
- Excellent wear protection and proper conduct foam
- Very good viscosity-temperature behaviour
- neutral behaviour towards sealing materials
- Extremely good detergent and dispersant characteristics
- Excellent corrosion protection even at the ingress of wetness
- zinc and ash-free
| Parameter | Unit | Value | Tests | |
|---|---|---|---|---|
| SAE | 32W |
32W
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | Daimler DBL 6721, MAN N 698, Müller , Parker Denison HF-0 |
Daimler DBL 6721, MAN N 698, Müller , Parker Denison HF-0
|
||
| specification | AFNOR NF E 48-603 HM, DIN 51524-2, ISO 11158 HM, ISO 6743-4 HM, JCMAS HK, SAE MS 1004 HM, SEB 181.222, U.S. Steel 127, U.S. Steel 136, VDMA 24318 |
AFNOR NF E 48-603 HM, DIN 51524-2, ISO 11158 HM, ISO 6743-4 HM, JCMAS HK, SAE MS 1004 HM, SEB 181.222, U.S. Steel 127, U.S. Steel 136, VDMA 24318
|
||
| Density at 20 °C | g/cm³ | 865 | EN ISO 12185 |
865
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 5.5 | DIN 51562-1 |
5.5
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 31.8 | DIN 51562-1 |
31.8
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 107 | DIN ISO 2909 |
107
DIN ISO 2909
|
|
| Approvals | AFNOR NF E 48-603 HM, DIN 51524-2, Daimler DBL 6721, ISO 11158 HM, ISO 6743-4 HM, JCMAS HK, MAN N 698, Müller , Parker Denison HF-0, SAE MS 1004 HM, SEB 181.222, U.S. Steel 127, U.S. Steel 136, VDMA 24318 |
AFNOR NF E 48-603 HM, DIN 51524-2, Daimler DBL 6721, ISO 11158 HM, ISO 6743-4 HM, JCMAS HK, MAN N 698, Müller , Parker Denison HF-0, SAE MS 1004 HM, SEB 181.222, U.S. Steel 127, U.S. Steel 136, VDMA 24318
|
||
| Recommendations | Daimler DBL 6721, MAN N 698, Müller Weingarten, Parker Denison HF-0 |
Daimler DBL 6721, MAN N 698, Müller Weingarten, Parker Denison HF-0
|
RAVENOL Hydraulikoel HLP-D 22
For construction equipment
RAVENOL Hydraulikoel HLP-D 22 is detergent hydraulic oil with good net and cleaning effect.
Compliance with the requirements:
Daimler DBL 6721, MAN N 698, Parker Denison HF-0
SAE: 22
- Available packaging
- Product parameters
Volume:
5 L
Vendor code:
1323303-005
Volume:
20 L
Vendor code:
1323303-020
1323303-020-01-999
Code:
4014835760523
Volume:
20 L, ecobox
Vendor code:
1323303-B20
Volume:
208 L
Vendor code:
1323303-208
1323303-208-01-999
Code:
4014835760585
Volume:
1000 L
Vendor code:
1323303-700
RAVENOL Hydraulikoel HLP-D 22 is designed with selected base oils with additives to prevent corrosion, wear and friction.
RAVENOL Hydraulikoel HLP-D 22 also contains detergent and dispersing agents, which always provide for a clean hydraulic system. These additives dissolve contaminants, hold them in suspension and enabling the cleaning of contaminated hydraulic systems. The functional elements of a hydraulic system thereby remain free of deposits and bonds. This will emulsified penetrating water and ensure trouble-free operation of the hydraulic system.
Application instructions
RAVENOL Hydraulikoel HLP-D 22 is for use in agriculture hydraulic systems, construction machinery, cement factories, foundries, and electro-plate clutches. It can also be used as functional test oil, inlet oil for aggregates and machinery, textile machinery and machine tools.
Characteristics
- High aging resistance and high corrosion protection
- Good air release
- Excellent wear protection and proper conduct foam
- Very good viscosity-temperature behaviour
- neutral behaviour towards sealing materials
- Extremely good detergent and dispersant characteristics
- Excellent corrosion protection even at the ingress of wetness
| Parameter | Unit | Value | Tests | |
|---|---|---|---|---|
| SAE | 22 |
22
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | Daimler DBL 6721, MAN N 698, Parker Denison HF-0 |
Daimler DBL 6721, MAN N 698, Parker Denison HF-0
|
||
| specification | DIN 51524-2 |
DIN 51524-2
|
||
| Density at 20 °C | g/cm³ | 849 | EN ISO 12185 |
849
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 4.6 | DIN 51562-1 |
4.6
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 23 | DIN 51562-1 |
23
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 120 | DIN ISO 2909 |
120
DIN ISO 2909
|
|
| Approvals | DIN 51524-2, Daimler DBL 6721, MAN N 698, Parker Denison HF-0 |
DIN 51524-2, Daimler DBL 6721, MAN N 698, Parker Denison HF-0
|
||
| Recommendations | Daimler DBL 6721, MAN N 698, Parker Denison HF-0 |
Daimler DBL 6721, MAN N 698, Parker Denison HF-0
|
