Search results for query «32W»

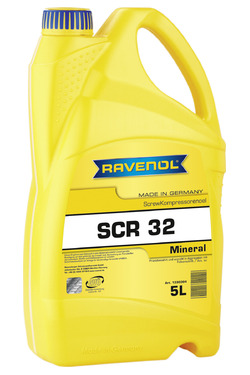

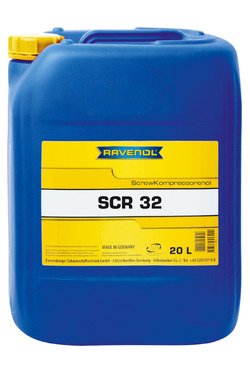

RAVENOL SCR 32 Screw Kompressorenöl

RAVENOL SCR 32 Screw Kompressorenöl

For compressors

RAVENOL SCR 32 Screw Kompressorenöl is optimal alloyed mineral screw compressor oil, with a high performance level and a wide application area of the whole industry. It is characterised by good viscosity temperature behaviour, a high aging resistant and a solid corrosion protection. Efficient additives offer an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.

Show more Hide details

SAE:  32W

  • Available packaging
  • Full description
  • Product parameters

Volume:
5 L

Vendor code:
1330304-005
1330304-005-01-999

Code:
4014835757158

Volume:
20 L

Vendor code:
1330304-020
1330304-020-01-999

Code:
4014835757127

Volume:
60 L

Vendor code:
1330304-060


Volume:
208 L

Vendor code:
1330304-208
1330304-208-01-999

Code:
4014835757189

Application instructions

RAVENOL SCR 32 Screw Kompressorenöl is used in compressors.

Characteristics

  • a high performance level
  • a very good viscosity temperature behaviour
  • a high aging resistant
  • an excellent corrosion protection
  • a solid corrosion protection
  • neutrality of sealing materials
Parameter Unit Value Tests
SAE 32W
32W
Type Mineral
Mineral
specification DIN 51524-2
DIN 51524-2
Density at 20 °C g/cm³ 848 EN ISO 12185
848 g/cm³ EN ISO 12185
Color light yellow visual
light yellow visual
Viscosity at 100 °C mm²/s 5.8 DIN 51562-1
5.8 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 32.1 DIN 51562-1
32.1 mm²/s DIN 51562-1
Viscosity Index VI 123 DIN ISO 2909
123 DIN ISO 2909
Aging stability, TOST % 2000 DIN 51587
2000 % DIN 51587
FZG-Test A/8.3/90 Damage loading step %wt. 12 DIN 51354/2
12 %wt. DIN 51354/2
Approvals DIN 51524-2
DIN 51524-2

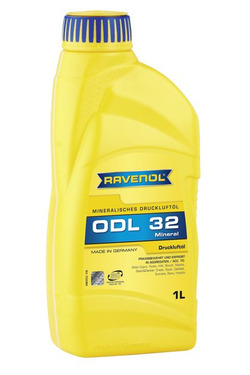

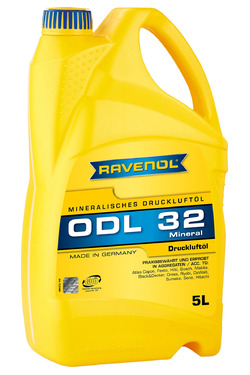

RAVENOL ODL 32 Druckluftoel

RAVENOL ODL 32 Druckluftoel

For pneumatic tools

RAVENOL ODL 32 Druckluftoel is a special-compressed-air-oil for pneumatic tools of all systems.

Compliance with the requirements:
Black & Decker

Show more Hide details

SAE:  32W

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

Vendor code:
1323404-001
1323404-001-01-999

Code:
4014835736610

Volume:
5 L

Vendor code:
1323404-005


Volume:
10 L

Vendor code:
1323404-010


Volume:
20 L

Vendor code:
1323404-020
1323404-020-01-999

Code:
4014835761124

Volume:
20 L, ecobox

Vendor code:
1323404-B20


Volume:
60 L

Vendor code:
1323404-060


Volume:
208 L

Vendor code:
1323404-208


RAVENOL ODL 32 Druckluftoel bonds condensed water, has an excellent corrosion protection, wear protection and an extraordinary pressure absorption capacity, a good adhesive power and high aging resistance. Easily conveying- and spray ability, economy consumption. No deposits caused by cleaning effects. Full power of impact.

Application instructions

RAVENOL ODL 32 Druckluftoel is especially suitable for pneumatic tools with sound-absorbing-case, for lubrication of rock drills, road breaker, chipping hammer and spade hammer, ram machines and other pneumatic aggregates. Application by pre-switch-lubricator according to working instructions or usable directly in the air pipe.

Please follow the manufacturer´s instructions.

Characteristics

  • a high performance level
  • a very good viscosity temperature behaviour
  • a good adherence
  • a high aging resistance
  • a reliable wear protection
  • an excellent corrosion protection
  • neutrality of sealing materials
Parameter Unit Value Tests
SAE 32W
32W
Type Mineral
Mineral
Recomendations Black & Decker
Black & Decker
Suitable for Atlas Copco Kompressor, Bosch, Cress, DeWalt, Festo, Hilti, Hitachi, Makita, Ryobi, Seno, Sumake
Atlas Copco Kompressor, Bosch, Cress, DeWalt, Festo, Hilti, Hitachi, Makita, Ryobi, Seno, Sumake
Density at 20 °C g/cm³ 848 EN ISO 12185
848 g/cm³ EN ISO 12185
Color light yellow visual
light yellow visual
Viscosity at 100 °C mm²/s 5.8 DIN 51562-1
5.8 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 32.1 DIN 51562-1
32.1 mm²/s DIN 51562-1
Viscosity Index VI 123 DIN ISO 2909
123 DIN ISO 2909
FZG-Test A/8.3/90 Damage loading step %wt. 12 DIN 51354/2
12 %wt. DIN 51354/2
Approvals Black & Decker
Black & Decker
Recommendations Atlas Copco Kompressor, Black & Decker, Bosch, Cress, DeWalt, Festo, Hilti, Hitachi, Makita, Ryobi, Seno, Sumake
Atlas Copco Kompressor, Black & Decker, Bosch, Cress, DeWalt, Festo, Hilti, Hitachi, Makita, Ryobi, Seno, Sumake

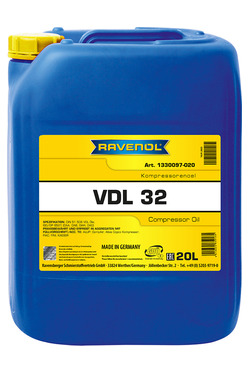

RAVENOL Kompressorenoel VDL 32

RAVENOL Kompressorenoel VDL 32

RAVENOL Kompressorenoel VDL 32 meets the high requirements of DIN 51 506. Specially designed with high quality, age-resistant base oils.

Show more Hide details

SAE:  32W

  • Available packaging
  • Full description
  • Product parameters

Volume:
20 L

Vendor code:
1330097-020


Volume:
208 L

Vendor code:
1330097-208


RAVENOL Kompressorenoel VDL 32 has a good adhesion, is water repellent and wear reducing. As many compressors operate at high temperatures, the oil should have good aging resistance at very low residue formation.

RAVENOL Kompressorenoel VDL 32 provides a secure lubrication not only in the upper temperature range, also in the cold state of the compressor to achieve a reduction of wear. By selected and coordinated additive composition the tendency to coking and the formation of flammable residues is minimized.

Application instructions

RAVENOL Kompressorenoel VDL 32 can be used in stationary and mobile compressors with discharge temperatures up to 220 °C.

RAVENOL Kompressorenoel VDL 32 can also be used for lubrication of engines and diesel engines where the manufacturer does not stipulate any HD motor oil.

Exceeds the requirements for VBL- and VCL-Oils.

Characteristics

  • Excellent aging resistance
  • Reliable wear protection
  • Excellent viscosity-temperature behavior
  • Very good cold starting properties
  • Low coking tendency
  • Neutral towards sealing materials
Parameter Unit Value Tests
SAE 32W
32W
Type Mineral
Mineral
specification DIN 51506 VDL, ISO/DP 6521 L-DAA, ISO/DP 6521 L-DAB, ISO/DP 6521 L-DAG, ISO/DP 6521 L-DAH
DIN 51506 VDL, ISO/DP 6521 L-DAA, ISO/DP 6521 L-DAB, ISO/DP 6521 L-DAG, ISO/DP 6521 L-DAH
Suitable for ALUP, Atlas Copco Kompressor, CompAir, FIAC, FINI, KAESER
ALUP, Atlas Copco Kompressor, CompAir, FIAC, FINI, KAESER
Density at 20 °C g/cm³ 854 EN ISO 12185
854 g/cm³ EN ISO 12185
Color Yellow visual
Yellow visual
Viscosity at 100 °C mm²/s 5.8 DIN 51562-1
5.8 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 32.1 DIN 51562-1
32.1 mm²/s DIN 51562-1
Viscosity Index VI 122 DIN ISO 2909
122 DIN ISO 2909
Approvals DIN 51506 VDL, ISO/DP 6521 L-DAA, ISO/DP 6521 L-DAB, ISO/DP 6521 L-DAG, ISO/DP 6521 L-DAH
DIN 51506 VDL, ISO/DP 6521 L-DAA, ISO/DP 6521 L-DAB, ISO/DP 6521 L-DAG, ISO/DP 6521 L-DAH
Recommendations ALUP, Atlas Copco Kompressor, CompAir, FIAC, FINI, KAESER
ALUP, Atlas Copco Kompressor, CompAir, FIAC, FINI, KAESER

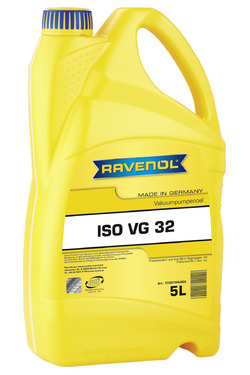

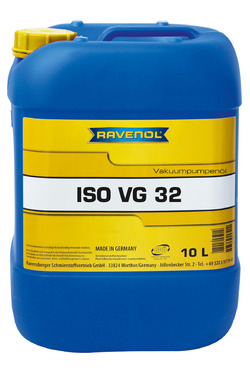

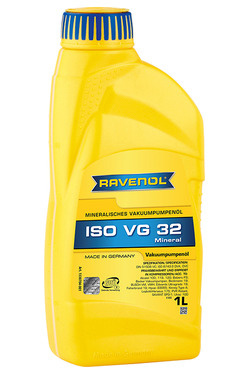

RAVENOL Vakuumpumpenoel ISO VG 32

RAVENOL Vakuumpumpenoel ISO VG 32

Vacuum oil

RAVENOL Vakuumpumpenoel ISO VG 32 is optimum alloyed and high level performance industrial oil with a wide range of applications throughout the industry. It is characterized by good viscosity-temperature behavior, high resistance to aging and reliable corrosion protection. Effective additives ensure even under extreme loads an excellent wear protection. Neutral behavior towards sealing materials.

Compliance with the requirements:
Alcatel 100, Alcatel 119, Alcatel 120, BUSCH VM, BUSCH VMH, Balzers P3, Becker Vakuumpumpen, Beckmann 19, DIN 51506 VC, Fisherbrand 19, Hyvac 93055, ISO 6743-3 DVA, ISO DVC, Kinney Type A, Leybold-Heraeus 175, PVR Rotant, SAVANT SPO-1, Ulvac 100

Show more Hide details

SAE:  32W

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

Vendor code:
1330704-001


Volume:
5 L

Vendor code:
1330704-005


Volume:
20 L

Vendor code:
1330704-020
1330704-020-01-999

Code:
4014835758520

Volume:
20 L, ecobox

Vendor code:
1330704-B20


Volume:
60 L

Vendor code:
1330704-060
1330704-060-01-999

Volume:
208 L

Vendor code:
1330704-208
1330704-208-01-999

Code:
4014835758582

Volume:
10 L

Vendor code:
1330704-010
1330704-010-01-999

Code:
4014835758544

Application instructions

RAVENOL Vakuumpumpenoel ISO VG 32 is suitable for the lubrication of vacuum pumps (rotary vane pumps, diffusion pumps, turbo pumps), where mineral oils are required, as well as for mist lubrication and crankcase.

RAVENOL Vakuumpumpenoel ISO VG 32 oil can be used very well for the lubrication of crankcases.

Characteristics

  • High performance level
  • Very good viscosity-temperature behavior
  • High resistance to aging
  • Excellent wear protection
  • Reliable corrosion protection
  • Neutral to seal materials
Parameter Unit Value Tests
SAE 32W
32W
Type Mineral
Mineral
Recomendations Alcatel 100, Alcatel 119, Alcatel 120, BUSCH VM, BUSCH VMH, Balzers P3, Becker Vakuumpumpen, Beckmann 19, DIN 51506 VC, Fisherbrand 19, Hyvac 93055, ISO 6743-3 DVA, ISO DVC, Kinney Type A, Leybold-Heraeus 175, PVR Rotant, SAVANT SPO-1, Ulvac 100
Alcatel 100, Alcatel 119, Alcatel 120, BUSCH VM, BUSCH VMH, Balzers P3, Becker Vakuumpumpen, Beckmann 19, DIN 51506 VC, Fisherbrand 19, Hyvac 93055, ISO 6743-3 DVA, ISO DVC, Kinney Type A, Leybold-Heraeus 175, PVR Rotant, SAVANT SPO-1, Ulvac 100
Density at 20 °C g/cm³ 848 EN ISO 12185
848 g/cm³ EN ISO 12185
Color light yellow visual
light yellow visual
Viscosity at 100 °C mm²/s 5.8 DIN 51562-1
5.8 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 32.1 DIN 51562-1
32.1 mm²/s DIN 51562-1
Viscosity Index VI 123 DIN ISO 2909
123 DIN ISO 2909
FZG-Test A/8.3/90 Damage loading step %wt. 12 DIN 51354/2
12 %wt. DIN 51354/2
Approvals Alcatel 100, Alcatel 119, Alcatel 120, BUSCH VM, BUSCH VMH, Balzers P3, Becker Vakuumpumpen, Beckmann 19, DIN 51506 VC, Fisherbrand 19, Hyvac 93055, ISO 6743-3 DVA, ISO DVC, Kinney Type A, Leybold-Heraeus 175, PVR Rotant, SAVANT SPO-1, Ulvac 100
Alcatel 100, Alcatel 119, Alcatel 120, BUSCH VM, BUSCH VMH, Balzers P3, Becker Vakuumpumpen, Beckmann 19, DIN 51506 VC, Fisherbrand 19, Hyvac 93055, ISO 6743-3 DVA, ISO DVC, Kinney Type A, Leybold-Heraeus 175, PVR Rotant, SAVANT SPO-1, Ulvac 100
Recommendations Alcatel 100, Alcatel 119, Alcatel 120, BUSCH VM, BUSCH VMH, Balzers P3, Becker Vakuumpumpen, Beckmann 19, DIN 51506 VC, Edwards Ultragrade 19, Fisherbrand 19, Hyvac 93055, ISO 6743-3 DVA und DVC, Kinney Type A, Leybold-Heraeus 175, PVR Rotant, SAVANT SPO-1, Ulvac 100
Alcatel 100, Alcatel 119, Alcatel 120, BUSCH VM, BUSCH VMH, Balzers P3, Becker Vakuumpumpen, Beckmann 19, DIN 51506 VC, Edwards Ultragrade 19, Fisherbrand 19, Hyvac 93055, ISO 6743-3 DVA und DVC, Kinney Type A, Leybold-Heraeus 175, PVR Rotant, SAVANT SPO-1, Ulvac 100
RAVENOL Hydraulikoel HVLP-D 32

RAVENOL Hydraulikoel HVLP-D 32

RAVENOL Hydraulikoel HVLP-D 32 is a detergent hydraulic oil with a high viscosity index for use in a wide temperature range (multi-range hydraulic oil).

Compliance with the requirements:
AFNOR 48-603, AFNOR 48-690/1, Cetop RP 91H HV, ISO 11158 HV, ISO 6743-4

Show more Hide details

SAE:  32W

  • Available packaging
  • Full description
  • Product parameters

Volume:
20 L

Vendor code:
1323364-020


Volume:
60 L

Vendor code:
1323364-060


Volume:
208 L

Vendor code:
1323364-208


RAVENOL Hydraulikoel HVLP-D 32 is designed with selected base oils with additives to prevent corrosion, wear and friction.

RAVENOL Hydraulikoel HVLP-D 32 is characterized by a good viscosity-temperature behavior, high aging resistance and reliable corrosion protection.

RAVENOL Hydraulikoel HVLP-D 32 also contains detergent and dispersing agents, which always provide for a clean hydraulic system.

These additives dissolve contaminants, hold them in suspension and enabling the cleaning of contaminated hydraulic systems. The functional elements of a hydraulic system thereby remain free of deposits and bonds. This will emulsified penetrating water and ensure trouble-free operation of the hydraulic system.

Application instructions

RAVENOL Hydraulikoel HVLP-D 32 is used in hydraulic systems which are exposed to very fluctuating operating temperatures, abrasion, dirt and water.

RAVENOL Hydraulikoel HVLP-D 32 is designed for heavily loaded hydraulic systems of agricultural, forestry and construction machinery and stationary hydraulic systems, e.g. Industrial equipment.

Characteristics

  • Reliable corrosion protection even when absorbing moisture
  • Good air and water separation capacity, prevention of foam formation
  • Excellent wear protection
  • Good oxidation stability
  • Excellent detergent and dispersing properties
  • Neutral behavior against sealing materials
  • Very low flow point
Parameter Unit Value Tests
SAE 32W
32W
Type Mineral
Mineral
Recomendations AFNOR 48-603, AFNOR 48-690/1, Cetop RP 91H HV, ISO 11158 HV, ISO 6743-4
AFNOR 48-603, AFNOR 48-690/1, Cetop RP 91H HV, ISO 11158 HV, ISO 6743-4
specification DIN 51524-3
DIN 51524-3
Density at 20 °C g/cm³ 845.1 EN ISO 12185
845.1 g/cm³ EN ISO 12185
Color Yellow visual
Yellow visual
Viscosity at 100 °C mm²/s 6.6 DIN 51562-1
6.6 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 32.3 DIN 51562-1
32.3 mm²/s DIN 51562-1
Viscosity Index VI 165 DIN ISO 2909
165 DIN ISO 2909
Approvals AFNOR 48-603, AFNOR 48-690/1, Cetop RP 91H HV, DIN 51524-3, ISO 11158 HV, ISO 6743-4
AFNOR 48-603, AFNOR 48-690/1, Cetop RP 91H HV, DIN 51524-3, ISO 11158 HV, ISO 6743-4
Recommendations AFNOR 48-603, AFNOR 48-690/1, CETOP RP 91H HV, ISO 11158 HV, ISO 6743-4
AFNOR 48-603, AFNOR 48-690/1, CETOP RP 91H HV, ISO 11158 HV, ISO 6743-4
RAVENOL Hydraulikoel TS 32 (HLP)

RAVENOL Hydraulikoel TS 32 (HLP)

For hydraulics

RAVENOL Hydraulikoel TS 32 (HLP) is optimal alloyed mineral hydraulic oil with a high performance level and a wide application area of the whole industry.

Compliance with the requirements:
AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Danieli Hydraulics, Eaton Vickers I-286-S, FZG Test A 8,3/90, Fives Cincinnati P-38, Fives Cincinnati P-68, GB 111118.1 L-HM, GM LH-02-1-04, GM LS-2, ISO 11158 HM, JCMAS HK, MIL-PRF-17672 E, Müller , Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, SEB 181.222, Sauer-Danfoss 520L0463, U.S. Steel 126, U.S. Steel 127, U.S. Steel 136, VDMA 24318, Vickers M-2950-S, Vickers Pumpentest

Show more Hide details

SAE:  32W

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

Vendor code:
1323104-001
1323104-001-01-999

Code:
4014835759312

Volume:
5 L

Vendor code:
1323104-005
1323104-005-01-999

Code:
4014835759350

Volume:
20 L

Vendor code:
1323104-020
1323104-020-01-999

Code:
4014835759329

Volume:
20 L, ecobox

Vendor code:
1323104-B20


Volume:
60 L

Vendor code:
1323104-060
1323104-060-01-999

Code:
4014835759367

Volume:
208 L

Vendor code:
1323104-208
1323104-208-01-999

Code:
4014835759381

Volume:
1000 L

Vendor code:
1323104-700


RAVENOL Hydraulikoel TS 32 (HLP) with efficient additives offers an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.

RAVENOL Hydraulikoel TS 32 (HLP) is characterised by good viscosity temperature behaviour, a high aging resistant and a solid corrosion protection.

Application instructions

RAVENOL Hydraulikoel TS 32 (HLP) is for universally use in all hydraulic systems.

RAVENOL Hydraulikoel TS 32 (HLP) is recommended in high performance hydraulic systems with high pressure pumps of all types, in sensitive control systems.

RAVENOL Hydraulikoel TS 32 (HLP) is used for hydraulic systems in agriculture, to supply small gearboxes and for use in circulating systems.

Characteristics

  • a high performance level
  • a very good viscosity temperature behaviour
  • a high aging resistant
  • an excellent corrosion protection
  • a solid corrosion protection
  • neutrality of sealing materials
Parameter Unit Value Tests
SAE 32W
32W
Type Mineral
Mineral
ASTM D6158
D6158
Recomendations AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Danieli Hydraulics, Eaton Vickers I-286-S, FZG Test A 8,3/90, Fives Cincinnati P-38, Fives Cincinnati P-68, GB 111118.1 L-HM, GM LH-02-1-04, GM LS-2, ISO 11158 HM, JCMAS HK, MIL-PRF-17672 E, Müller , Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, SEB 181.222, Sauer-Danfoss 520L0463, U.S. Steel 126, U.S. Steel 127, U.S. Steel 136, VDMA 24318, Vickers M-2950-S, Vickers Pumpentest
AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Danieli Hydraulics, Eaton Vickers I-286-S, FZG Test A 8,3/90, Fives Cincinnati P-38, Fives Cincinnati P-68, GB 111118.1 L-HM, GM LH-02-1-04, GM LS-2, ISO 11158 HM, JCMAS HK, MIL-PRF-17672 E, Müller , Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, SEB 181.222, Sauer-Danfoss 520L0463, U.S. Steel 126, U.S. Steel 127, U.S. Steel 136, VDMA 24318, Vickers M-2950-S, Vickers Pumpentest
specification DIN 51524-2, ISO 6743-4 HM
DIN 51524-2, ISO 6743-4 HM
Suitable for Atos, Metso
Atos, Metso
Density at 20 °C g/cm³ 848 EN ISO 12185
848 g/cm³ EN ISO 12185
Color light yellow visual
light yellow visual
Viscosity at 100 °C mm²/s 5.8 DIN 51562-1
5.8 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 32.1 DIN 51562-1
32.1 mm²/s DIN 51562-1
Viscosity Index VI 123 DIN ISO 2909
123 DIN ISO 2909
Approvals AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, DIN 51524-2, Danieli Hydraulics, Eaton Vickers I-286-S, FZG Test A 8,3/90, Fives Cincinnati P-38, Fives Cincinnati P-68, GB 111118.1 L-HM, GM LH-02-1-04, GM LS-2, ISO 11158 HM, ISO 6743-4 HM, JCMAS HK, MIL-PRF-17672 E, Müller , Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, SEB 181.222, Sauer-Danfoss 520L0463, U.S. Steel 126, U.S. Steel 127, U.S. Steel 136, VDMA 24318, Vickers M-2950-S, Vickers Pumpentest
AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, DIN 51524-2, Danieli Hydraulics, Eaton Vickers I-286-S, FZG Test A 8,3/90, Fives Cincinnati P-38, Fives Cincinnati P-68, GB 111118.1 L-HM, GM LH-02-1-04, GM LS-2, ISO 11158 HM, ISO 6743-4 HM, JCMAS HK, MIL-PRF-17672 E, Müller , Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, SEB 181.222, Sauer-Danfoss 520L0463, U.S. Steel 126, U.S. Steel 127, U.S. Steel 136, VDMA 24318, Vickers M-2950-S, Vickers Pumpentest
Recommendations AFNOR NFE 48-603 HM, ASTM D6158, Atos, Bosch Rexroth RE 90220, CETOP RP 91H HM, Danieli Hydraulics, Eaton Vickers I-286-S, FZG-Test A 8,3/90, Fives Cincinnati P-38, Fives Cincinnati P-68, GB 111118.1 L-HM (conventional), GM LH-02-1-04, GM LS-2, ISO 11158 HM, JCMAS HK, M-2950-S, MIL-PRF-17672 E, Metso, Müller Weingarten, Parker Denison HF-0, Parker Denison HF-1, Parker Dension HF-2, SAE MS1004 HM, SEB 181.222, Sauer-Danfoss 520L0463, US Steel 126, US Steel 127, US Steel 136, VDMA 24318, Vickers-Pumpentest
AFNOR NFE 48-603 HM, ASTM D6158, Atos, Bosch Rexroth RE 90220, CETOP RP 91H HM, Danieli Hydraulics, Eaton Vickers I-286-S, FZG-Test A 8,3/90, Fives Cincinnati P-38, Fives Cincinnati P-68, GB 111118.1 L-HM (conventional), GM LH-02-1-04, GM LS-2, ISO 11158 HM, JCMAS HK, M-2950-S, MIL-PRF-17672 E, Metso, Müller Weingarten, Parker Denison HF-0, Parker Denison HF-1, Parker Dension HF-2, SAE MS1004 HM, SEB 181.222, Sauer-Danfoss 520L0463, US Steel 126, US Steel 127, US Steel 136, VDMA 24318, Vickers-Pumpentest

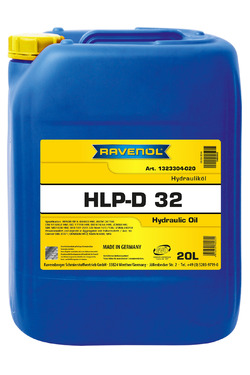

RAVENOL Hydraulikoel HLP-D 32

RAVENOL Hydraulikoel HLP-D 32

For construction equipment

RAVENOL Hydraulikoel HLP-D 32 is detergent hydraulic oil with good net and cleaning effect.

Compliance with the requirements:
Daimler DBL 6721, MAN N 698, Müller , Parker Denison HF-0

Show more Hide details

SAE:  32W

  • Available packaging
  • Full description
  • Product parameters

Volume:
5 L

Vendor code:
1323304-005


Volume:
20 L

Vendor code:
1323304-020

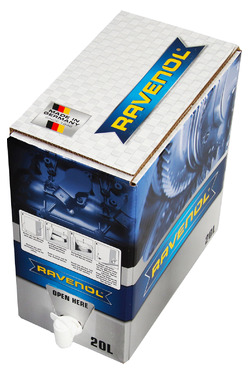

Volume:
20 L, ecobox

Vendor code:
1323304-B20
1323304-B20-01-888

Volume:
60 L

Vendor code:
1323304-060


Volume:
208 L

Vendor code:
1323304-208
1323304-208-01-999

Code:
4014835760684

Volume:
1000 L

Vendor code:
1323304-700


RAVENOL Hydraulikoel HLP-D 32 is designed with selected base oils with additives to prevent corrosion, wear and friction.

RAVENOL Hydraulikoel HLP-D 32 also contains detergent and dispersing agents, which always provide for a clean hydraulic system. These additives dissolve contaminants, hold them in suspension and enabling the cleaning of contaminated hydraulic systems. The functional elements of a hydraulic system thereby remain free of deposits and bonds. This will emulsified penetrating water and ensure trouble-free operation of the hydraulic system.

RAVENOL Hydraulikoel HLP-D 32 is zinc and ash-free.

Application instructions

RAVENOL Hydraulikoel HLP-D 32 is for use in agriculture hydraulic systems, construction machinery, cement factories, foundries, and electro-plate clutches. It can also be used as functional test oil, inlet oil for aggregates and machinery, textile machinery and machine tools.

Characteristics

  • High aging resistance and high corrosion protection
  • Good air release
  • Excellent wear protection and proper conduct foam
  • Very good viscosity-temperature behaviour
  • neutral behaviour towards sealing materials
  • Extremely good detergent and dispersant characteristics
  • Excellent corrosion protection even at the ingress of wetness
  • zinc and ash-free
Parameter Unit Value Tests
SAE 32W
32W
Type Mineral
Mineral
Recomendations Daimler DBL 6721, MAN N 698, Müller , Parker Denison HF-0
Daimler DBL 6721, MAN N 698, Müller , Parker Denison HF-0
specification AFNOR NF E 48-603 HM, DIN 51524-2, ISO 11158 HM, ISO 6743-4 HM, JCMAS HK, SAE MS 1004 HM, SEB 181.222, U.S. Steel 127, U.S. Steel 136, VDMA 24318
AFNOR NF E 48-603 HM, DIN 51524-2, ISO 11158 HM, ISO 6743-4 HM, JCMAS HK, SAE MS 1004 HM, SEB 181.222, U.S. Steel 127, U.S. Steel 136, VDMA 24318
Density at 20 °C g/cm³ 865 EN ISO 12185
865 g/cm³ EN ISO 12185
Color tan visual
tan visual
Viscosity at 100 °C mm²/s 5.5 DIN 51562-1
5.5 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 31.8 DIN 51562-1
31.8 mm²/s DIN 51562-1
Viscosity Index VI 107 DIN ISO 2909
107 DIN ISO 2909
Approvals AFNOR NF E 48-603 HM, DIN 51524-2, Daimler DBL 6721, ISO 11158 HM, ISO 6743-4 HM, JCMAS HK, MAN N 698, Müller , Parker Denison HF-0, SAE MS 1004 HM, SEB 181.222, U.S. Steel 127, U.S. Steel 136, VDMA 24318
AFNOR NF E 48-603 HM, DIN 51524-2, Daimler DBL 6721, ISO 11158 HM, ISO 6743-4 HM, JCMAS HK, MAN N 698, Müller , Parker Denison HF-0, SAE MS 1004 HM, SEB 181.222, U.S. Steel 127, U.S. Steel 136, VDMA 24318
Recommendations Daimler DBL 6721, MAN N 698, Müller Weingarten, Parker Denison HF-0
Daimler DBL 6721, MAN N 698, Müller Weingarten, Parker Denison HF-0
RAVENOL Hydraulikoel TSX 32 (HVLP)

RAVENOL Hydraulikoel TSX 32 (HVLP)

For hydraulics

RAVENOL Hydraulikoel TSX 32 (HVLP) is high quality multi-grade hydraulic oil type HVLP based on special selected solvent refined basic oils. It is characterised by a high stable viscosity index and a solid corrosion protection. Efficient additives offer an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.

Compliance with the requirements:
Bosch Rexroth RE 90220, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GM LH-03-1-04, GM LS-2, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sauer-Danfoss 520L0463

Show more Hide details

SAE:  32W

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

Vendor code:
1323204-001


Volume:
5 L

Vendor code:
1323204-005


Volume:
20 L

Vendor code:
1323204-020
1323204-020-01-999

Code:
4014835760127

Volume:
20 L, ecobox

Vendor code:
1323204-B20


Volume:
60 L

Vendor code:
1323204-060
1323204-060-01-999

Code:
4014835760165

Volume:
208 L

Vendor code:
1323204-208
1323204-208-01-999

Code:
4014835760189

Volume:
1000 L

Vendor code:
1323204-700


Application instructions

RAVENOL Hydraulikoel TSX 32 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.

Characteristics

  • A high and stable viscosity index
  • An excellent corrosion protection
  • An excellent protection against wear
  • A very good air and water separation behaviour to prevent foam formation
  • Neutral behaviour towards sealing of plastics
  • A very low pour point
Parameter Unit Value Tests
SAE 32W
32W
Type Mineral
Mineral
Recomendations Bosch Rexroth RE 90220, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GM LH-03-1-04, GM LS-2, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sauer-Danfoss 520L0463
Bosch Rexroth RE 90220, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GM LH-03-1-04, GM LS-2, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sauer-Danfoss 520L0463
specification AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Cetop RP 91H HV, DIN 51524-3, GB 111118.1 L-HV, ISO 11158 HV, ISO 6743-4 HV, JCMAS HK VG32W, SAE MS 1004, U.S. Steel 127, U.S. Steel 136
AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Cetop RP 91H HV, DIN 51524-3, GB 111118.1 L-HV, ISO 11158 HV, ISO 6743-4 HV, JCMAS HK VG32W, SAE MS 1004, U.S. Steel 127, U.S. Steel 136
Density at 20 °C g/cm³ 845 EN ISO 12185
845 g/cm³ EN ISO 12185
Color Yellow visual
Yellow visual
Viscosity at 100 °C mm²/s 6.3 DIN 51562-1
6.3 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 32 DIN 51562-1
32 mm²/s DIN 51562-1
Viscosity Index VI 152 DIN ISO 2909
152 DIN ISO 2909
tbn mgKOH/g 0.4 ASTM D2896
0.4 mgKOH/g ASTM D2896
Approvals AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, DIN 51524-3, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GB 111118.1 L-HV, GM LH-03-1-04, GM LS-2, ISO 11158 HV, ISO 6743-4 HV, JCMAS HK VG32W, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004, Sauer-Danfoss 520L0463, U.S. Steel 127, U.S. Steel 136
AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, DIN 51524-3, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GB 111118.1 L-HV, GM LH-03-1-04, GM LS-2, ISO 11158 HV, ISO 6743-4 HV, JCMAS HK VG32W, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004, Sauer-Danfoss 520L0463, U.S. Steel 127, U.S. Steel 136
Recommendations Bosch Rexroth RE 90220, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GM LH-03-1-04, GM LS-2, Parker Denison HF-0, Parker Denison HF-1, Parker Dension HF-2, Sauer-Danfoss 520L0463
Bosch Rexroth RE 90220, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GM LH-03-1-04, GM LS-2, Parker Denison HF-0, Parker Denison HF-1, Parker Dension HF-2, Sauer-Danfoss 520L0463
RAVENOL Getriebeoel CLP 32

RAVENOL Getriebeoel CLP 32

RAVENOL Getriebeoel CLP 32

Compliance with the requirements:
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224

Show more Hide details

SAE:  32W

  • Available packaging
  • Full description
  • Product parameters

Volume:
20 L

Vendor code:
1332104-020


is a high quality, mineral-based gear oil formulated with selected high-pressure additives (EP additives). Its special active substance combination provides a good, stable high-pressure impact load capacity.

RAVENOL Getriebeoel CLP 32

has a low pour point and therefore a very good cold behaviour.

Application instructions

RAVENOL Getriebeoel CLP 3

can be used as a lubricant in nearly all industrial gear drives due to its good stress and/or impact characteristics.

Characteristics

  • A very good, stable high-pressure absorption capacity under shock loads.
  • Resistant properties at elevated temperatures
  • A good anti-rust and anti-corrosion effect
  • Excellent wear protection
  • A very good effect against foam formation
  • A low pour point
  • A very good cold behavior
Parameter Unit Value Tests
SAE 32W
32W
Type Mineral
Mineral
Recomendations AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
specification DIN 51517-3
DIN 51517-3
Suitable for Cincinnati Milacron
Cincinnati Milacron
Density at 20 °C g/cm³ 854 EN ISO 12185
854 g/cm³ EN ISO 12185
Color Yellow visual
Yellow visual
Viscosity at 100 °C mm²/s 6 DIN 51562-1
6 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 34.6 DIN 51562-1
34.6 mm²/s DIN 51562-1
Viscosity Index VI 119 DIN ISO 2909
119 DIN ISO 2909
Approvals AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224
AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224
Recommendations AGMA 9005-D94, Cincinnati Milacron, Clean Panel Coker, S-200 Oxidation Tubes, US Steel 224
AGMA 9005-D94, Cincinnati Milacron, Clean Panel Coker, S-200 Oxidation Tubes, US Steel 224

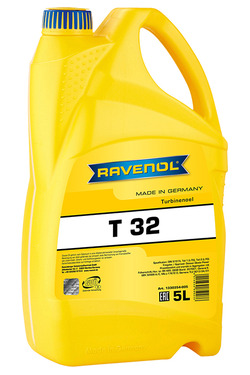

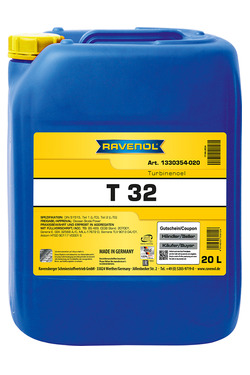

RAVENOL Turbinenoel T 32

RAVENOL Turbinenoel T 32

For lubrication

RAVENOL Turbinenöl T 32 is produced for the lubrication of gas and steam turbines as well as turbo compressors with and without transmission according to the specifications of DIN 51 515-2.

Compliance with the requirements:
Alstom HTGD 90117 V0001 S, BS 489, Brown Boveri HTGD 90117, CEGB 207001, General Electric GEK 32568 A, General Electric GEK 32568 C, ISO VG 32, MIL-L-17672 D, Siemens TLV 9013 01, Siemens TLV 9013 04, Solar ES 9 224 Class II, U.S. Steel 20, Westinghouse Turbine Oil Spec.

Show more Hide details

SAE:  32W

  • Available packaging
  • Full description
  • Product parameters

Volume:
5 L

Vendor code:
1330354-005


Volume:
20 L

Vendor code:
1330354-020


Volume:
208 L

Vendor code:
1330354-208


Volume:
1000 L

Vendor code:
1330354-700


RAVENOL Turbinenöl T 32 is based on high quality mineral base oils with agents to increase the corrosion protection and aging resistance.

RAVENOL Turbinenöl T 32 is a universal mineral oil for turbines of especially chosen refined base oils with a natural high viscosity index. So-called “metal deactivators” are added to the turbine oil in addition to the normal additives in order to guarantee excellent characteristics.

RAVENOL Turbinenöl T 32 is zinc-free due to its formulation.

Application instructions

RAVENOL Turbinenöl T 32 is used in fixed gas and steam turbines as well as in electrical machines or machines driven by steam turbines like generators, compressors, pumps and transmissions.

RAVENOL Turbinenöl T 32 can also be used for the lubrication of hydraulic systems, compressors, gear transfers and bearings in case of problems of the contamination with water because a high protection against rust and oxidation is requested.

Characteristics

  • an excellent thermic and oxidative stability
  • an excellent viscosity temperature behaviour
  • a high and stable viscosity index
  • a very good oxidation stability also at very high temperatures
  • a good protection against corrosion of Ferro and non Ferro metals
  • an excellent water separation behaviour
  • a very good air separation behaviour which excludes foam formation as far as possible
  • a low pourpoint
  • a good corrosion behaviour
  • an excellent water separation behaviour / demulsifying behaviour
Parameter Unit Value Tests
SAE 32W
32W
Type Mineral
Mineral
Recomendations Alstom HTGD 90117 V0001 S, BS 489, Brown Boveri HTGD 90117, CEGB 207001, General Electric GEK 32568 A, General Electric GEK 32568 C, ISO VG 32, MIL-L-17672 D, Siemens TLV 9013 01, Siemens TLV 9013 04, Solar ES 9 224 Class II, U.S. Steel 20, Westinghouse Turbine Oil Spec.
Alstom HTGD 90117 V0001 S, BS 489, Brown Boveri HTGD 90117, CEGB 207001, General Electric GEK 32568 A, General Electric GEK 32568 C, ISO VG 32, MIL-L-17672 D, Siemens TLV 9013 01, Siemens TLV 9013 04, Solar ES 9 224 Class II, U.S. Steel 20, Westinghouse Turbine Oil Spec.
specification DIN 51515-1 L-TD, DIN 51515-2 L-TG
DIN 51515-1 L-TD, DIN 51515-2 L-TG
Suitable for Doosan Skoda Power
Doosan Skoda Power
Density at 20 °C g/cm³ 849 EN ISO 12185
849 g/cm³ EN ISO 12185
Color Yellow visual
Yellow visual
Viscosity at 100 °C mm²/s 5.8 DIN 51562-1
5.8 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 32.1 DIN 51562-1
32.1 mm²/s DIN 51562-1
Viscosity Index VI 122 DIN ISO 2909
122 DIN ISO 2909
Approvals Alstom HTGD 90117 V0001 S, BS 489, Brown Boveri HTGD 90117, CEGB 207001, DIN 51515-1 L-TD, DIN 51515-2 L-TG, General Electric GEK 32568 A, General Electric GEK 32568 C, ISO VG 32, MIL-L-17672 D, Siemens TLV 9013 01, Siemens TLV 901304, Solar ES 9 224 Class II, U.S. Steel 20, Westinghouse Turbine Oil Spec.
Alstom HTGD 90117 V0001 S, BS 489, Brown Boveri HTGD 90117, CEGB 207001, DIN 51515-1 L-TD, DIN 51515-2 L-TG, General Electric GEK 32568 A, General Electric GEK 32568 C, ISO VG 32, MIL-L-17672 D, Siemens TLV 9013 01, Siemens TLV 901304, Solar ES 9 224 Class II, U.S. Steel 20, Westinghouse Turbine Oil Spec.
Recommendations Alstom HTGD 90117 V0001 S, British Standard BS 489, Brown Boveri HTGD 90117, CEGB Standard 207001, General Electric GEK 32568 A, General Electric GEK 32568 C, MIL-L-17672 D, Siemens TLV 9013 01, Siemens TLV 9013 04, Solar ES 9 224 Classe II (ISO VG 32), US Steel 120, Westinghouse Electric Corp. Turbine Oil Spec.
Alstom HTGD 90117 V0001 S, British Standard BS 489, Brown Boveri HTGD 90117, CEGB Standard 207001, General Electric GEK 32568 A, General Electric GEK 32568 C, MIL-L-17672 D, Siemens TLV 9013 01, Siemens TLV 9013 04, Solar ES 9 224 Classe II (ISO VG 32), US Steel 120, Westinghouse Electric Corp. Turbine Oil Spec.
RAVENOL Hydraulikoel TS AF 32

RAVENOL Hydraulikoel TS AF 32

For hydraulics

RAVENOL Hydraulikoel TS AF 32 is a zinc and ash-free compounded oil based phosphorous and sulfur intended especially for use in the metal industry. Excellent results were achieved in the Timken test. Through the addition of selected ingredients, RAVENOL Hydraulikoel TS AF 32 has excellent wear protection, good oxidation stability and has a long service life even under extreme conditions. Compatibility with sealants is neutral. Furthermore, the additives provide corrosion protection and prevent foaming.

Compliance with the requirements:
Eaton Vickers I-286-S, Eaton Vickers M-2950-S, FZG Test A 8,3/90, Fives Cincinnati P-38, Fives Cincinnati P-68, GM LH-03-1-04, MAN N 698, Müller , Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SEB 181.222, SEB 181.226, Thyssen TH-N256-142, Timken-Test DIN E 51434, Vickers Pumpentest

Show more Hide details

SAE:  32W

  • Available packaging
  • Full description
  • Product parameters

Volume:
20 L

Vendor code:
1323124-020


Volume:
20 L, ecobox

Vendor code:
1323124-B20


Volume:
60 L

Vendor code:
1323124-060


Volume:
208 L

Vendor code:
1323124-208
1323124-208-01-999

Code:
4014835759787

RAVENOL Hydraulikoel TS AF 32 exceeds the requirements of DIN 51 524 part 2 for HLP hydraulic oils.

Application instructions

RAVENOL Hydraulikoel TS AF 32 is for use as a hydraulic fluid in the metal industry, if zinc and ash-free hydraulic oil and the specification DIN 51 524, Part 2 is required.

Characteristics

  • High performance level
  • Good oxidation stability
  • High resistance to ageing
  • Outstanding wear protection
  • High level of corrosion protection
  • Neutral to sealants
  • No foaming
Parameter Unit Value Tests
SAE 32W
32W
Type Mineral
Mineral
Recomendations Eaton Vickers I-286-S, Eaton Vickers M-2950-S, FZG Test A 8,3/90, Fives Cincinnati P-38, Fives Cincinnati P-68, GM LH-03-1-04, MAN N 698, Müller , Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SEB 181.222, SEB 181.226, Thyssen TH-N256-142, Timken-Test DIN E 51434, Vickers Pumpentest
Eaton Vickers I-286-S, Eaton Vickers M-2950-S, FZG Test A 8,3/90, Fives Cincinnati P-38, Fives Cincinnati P-68, GM LH-03-1-04, MAN N 698, Müller , Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SEB 181.222, SEB 181.226, Thyssen TH-N256-142, Timken-Test DIN E 51434, Vickers Pumpentest
specification AFNOR NF E 48-603 HM, DIN 51524-2, GB 111118.1 L-HM, ISO 11158, ISO 6743-4 HM, MS1004 HM, SAE MS 1004 HM, U.S. Steel 127, U.S. Steel 136
AFNOR NF E 48-603 HM, DIN 51524-2, GB 111118.1 L-HM, ISO 11158, ISO 6743-4 HM, MS1004 HM, SAE MS 1004 HM, U.S. Steel 127, U.S. Steel 136
Density at 20 °C g/cm³ 855 EN ISO 12185
855 g/cm³ EN ISO 12185
Color Yellow visual
Yellow visual
Viscosity at 100 °C mm²/s 5.8 DIN 51562-1
5.8 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 32.2 DIN 51562-1
32.2 mm²/s DIN 51562-1
Viscosity Index VI 124 DIN ISO 2909
124 DIN ISO 2909
Approvals AFNOR NF E 48-603 HM, DIN 51524-2, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, FZG Test A 8,3/90, Fives Cincinnati P-38, Fives Cincinnati P-68, GB 111118.1 L-HM, GM LH-03-1-04, ISO 11158, ISO 6743-4 HM, MAN N 698, MS1004 HM, Müller , Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, SEB 181.222, SEB 181.226, Thyssen TH-N256-142, Timken-Test DIN E 51434, U.S. Steel 127, U.S. Steel 136, Vickers Pumpentest
AFNOR NF E 48-603 HM, DIN 51524-2, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, FZG Test A 8,3/90, Fives Cincinnati P-38, Fives Cincinnati P-68, GB 111118.1 L-HM, GM LH-03-1-04, ISO 11158, ISO 6743-4 HM, MAN N 698, MS1004 HM, Müller , Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, SEB 181.222, SEB 181.226, Thyssen TH-N256-142, Timken-Test DIN E 51434, U.S. Steel 127, U.S. Steel 136, Vickers Pumpentest
Recommendations Eaton Vickers I-286-S, Eaton Vickers M-2950-S, FZG-Test A 8,3/90, Fives Cincinnati P-38, Fives Cincinnati P-68, GM LH-03-1-04, MAN N 698, Müller Weingarten, Parker Denison HF-0, Parker Denison HF-1, Parker Dension HF-2, SEB 181.222, SEB 181.226, Thyssen TH-N256-142, Timken-Test nach DIN E 51434, Vickers-Pumpentest
Eaton Vickers I-286-S, Eaton Vickers M-2950-S, FZG-Test A 8,3/90, Fives Cincinnati P-38, Fives Cincinnati P-68, GM LH-03-1-04, MAN N 698, Müller Weingarten, Parker Denison HF-0, Parker Denison HF-1, Parker Dension HF-2, SEB 181.222, SEB 181.226, Thyssen TH-N256-142, Timken-Test nach DIN E 51434, Vickers-Pumpentest

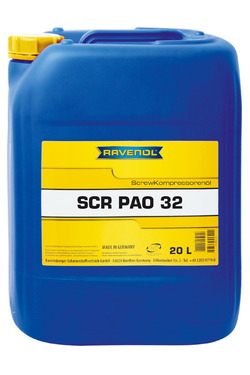

RAVENOL SCR PAO 32 Screw Kompressorenoel

RAVENOL SCR PAO 32 Screw Kompressorenoel

For compressors

RAVENOL SCR PAO 32 Screw Kompressorenöl is full synthetic compressoroil with ISO VG Class 32, which is specifically designed to provide effective lubrication in rotary screw air compressors.

Compliance with the requirements:
DIN 51 506 VDL

Show more Hide details

SAE:  32W

  • Available packaging
  • Full description
  • Product parameters

Volume:
20 L

Vendor code:
1330314-020
1330314-020-01-999

Code:
4014835757523

Volume:
208 L

Vendor code:
1330314-208
1330314-208-01-999

Code:
4014835757585

RAVENOL SCR PAO 32 Screw Kompressorenöl is also specifically designed to significantly extend service life in rotary screw compressors.

RAVENOL SCR PAO 32 Screw Kompressorenöl has excellent resistance to oxidative breakdown caused by exposure to air at high discharge temperatures it has excellent thermal stability for reducing carbon deposit formation.

RAVENOL SCR PAO 32 Screw Kompressorenöl shows good protection against wear, protects against rust and corrosion. Low volatility reduces oil carry-over into the air system. Reduces fluid consumption.

The full benefits of a change to RAVENOL SCR PAO 32 Screw Kompressorenöl will only be realized by minimizing contamination with the previously used oil. Certain makes of compressors do not permit completedraining, so if the drained oil is heavily oxidized (shown by significant increase in the oil’s total acid number and viscosity), recharging with RAVENOL SCR PAO 32 Screw Kompressorenöl may not result in optimum performance and fluid service life.

RAVENOL SCR PAO 32 Screw Kompressorenöl has excellent oxidation stability, corrosion, deposit control and low volatility and provides up to 8,000 hours of continuous worry-free service for lubrication, sealing and effective heat removal for efficient compressor performance.

Application instructions

RAVENOL SCR PAO 32 Screw Kompressorenöl is recommended for use in rotary screw air compressors.

While RAVENOL SCR PAO 32 Screw Kompressorenöl is fully compatible with most mineral and synthetic compressor fluids, it should not be mixed or contaminated with fluids containing polyalkylene glycols or silicones.

Characteristics

  • High oxidation stability.
  • Excellent protection against rust and corrosion.
  • Excellent resistance to oxidative breakdown caused by exposure to air at high discharge temperatures
  • Higher thermal stability reduces carbon deposit formation.
  • Improved viscosity index and good low temperature properties.
  • Good protection against wear.
  • Protects against rust and corrosion.
  • Low volatility reduces oil carry-over into the air system.
  • Reduces fluid consumption.
Parameter Unit Value Tests
SAE 32W
32W
Type Full synthetic
Full synthetic
Recomendations DIN 51 506 VDL
DIN 51 506 VDL
specification ISO ISO VG Class 32
ISO ISO VG Class 32
Density at 20 °C g/cm³ 839 EN ISO 12185
839 g/cm³ EN ISO 12185
Color light yellow visual
light yellow visual
Viscosity at 100 °C mm²/s 6 DIN 51562-1
6 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 30.9 DIN 51562-1
30.9 mm²/s DIN 51562-1
Viscosity Index VI 142 DIN ISO 2909
142 DIN ISO 2909
Acid Number TAN mgKOH/g 0.15 ASTM D664
0.15 mgKOH/g ASTM D664
Water separation ml/54°Cmin 40-40-0 (5) ASTM D1401
40-40-0 (5) ml/54°Cmin ASTM D1401
Seq. I at 24 °C ml/ml 0/0 ASTM D892
0/0 ml/ml ASTM D892
Seq. II at 93,5 °C ml/ml 0/0 ASTM D892
0/0 ml/ml ASTM D892
Seq. III at 24 °C after 93,5 °C ml/ml 0/0 ASTM D892
0/0 ml/ml ASTM D892
Copper Corrosion: 1a ASTM D130
1a ASTM D130
Rust A – distilled Water passed ASTM D665
passed ASTM D665
Rust B – Synthetic Sea Water passed ASTM D665
passed ASTM D665
Approvals DIN 51 506 VDL, ISO ISO VG Class 32
DIN 51 506 VDL, ISO ISO VG Class 32
Recommendations Übertrifft die Anforderungen nach DIN 51 506 VDL
Übertrifft die Anforderungen nach DIN 51 506 VDL

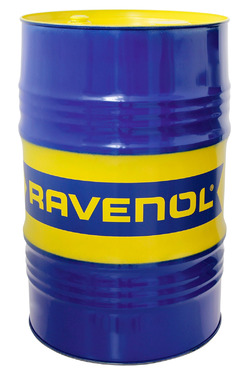

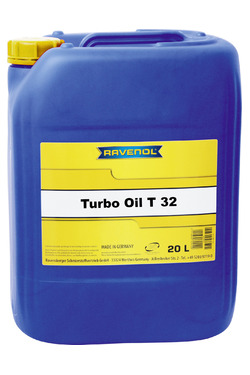

RAVENOL Turbo Oil T32

RAVENOL Turbo Oil T32

RAVENOL Turbo Oil T32

Manufacturer Approved:
Siemens TLV 9013 04, Siemens TLV 9013 05

Compliance with the requirements:
Alstom HTGD 90117 V0001 S, BS 489, Brown Boveri HTGD 90117, CEGB 207001, General Electric GEK 32568 A, General Electric GEK 32568 C, MIL-L-17672 D, U.S. Steel 120, Westinghouse Turbine Oil Spec.

Show more Hide details

SAE:  32W

  • Available packaging
  • Full description
  • Product parameters

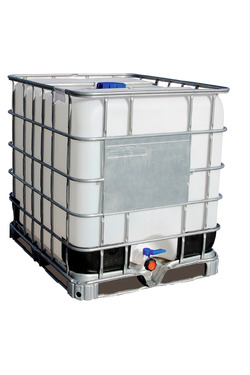

Volume:
1000 L

Vendor code:
1331114-700


Volume:
20 L

Vendor code:
1331114-020
1331114-020-01-999

Volume:
60 L

Vendor code:
1331114-060
1331114-060-01-999

Volume:
208 L

Vendor code:
1331114-208
1331114-208-01-999

is a high quality lubricating oil for gas and steam turbines as well as for turbo compressors with and without gears, which meets the requirements of DIN 51515-2.

RAVENOL Turbo Oil T32

is based on high quality base oils with additives to improve the corrosion protection and resistance to aging.

RAVENOL Turbo Oil T32

is an all-purpose oil for turbines from specially selected base oils with the addition of special refined additives.

RAVENOL Turbo Oil T32 is zinc-free due to its formulation.

Application instructions

RAVENOL Turbo Oil T3

is used in stationary gas turbines, steam turbines and also in electrical or in driven by steam machines, such as generators, compressors, pumps and gearboxes.

RAVENOL Turbo Oil T3

is also for use in lubrication of hydraulic systems, compressors, gear transmissions and bearings.

Characteristics

  • Excellent thermal and oxidative stability
  • Excellent viscosity-temperature behavior
  • Very good oxidation stability
  • Good protection against corrosion of steel and non-ferrous metals
  • A very good air separation ability, which largely eliminates foam formation
  • Low pour point
  • Good wear behavior
  • Excellent water separation ability/demulsification behavior
Parameter Unit Value Tests
SAE 32W
32W
Type Mineral
Mineral
Manufacturer Approved Siemens TLV 9013 04, Siemens TLV 9013 05
Siemens TLV 9013 04, Siemens TLV 9013 05
Recomendations Alstom HTGD 90117 V0001 S, BS 489, Brown Boveri HTGD 90117, CEGB 207001, General Electric GEK 32568 A, General Electric GEK 32568 C, MIL-L-17672 D, U.S. Steel 120, Westinghouse Turbine Oil Spec.
Alstom HTGD 90117 V0001 S, BS 489, Brown Boveri HTGD 90117, CEGB 207001, General Electric GEK 32568 A, General Electric GEK 32568 C, MIL-L-17672 D, U.S. Steel 120, Westinghouse Turbine Oil Spec.
specification DIN 51515-1 L-TD, DIN 51515-2 L-TG
DIN 51515-1 L-TD, DIN 51515-2 L-TG
Density at 20 °C g/cm³ 849 EN ISO 12185
849 g/cm³ EN ISO 12185
Color L1.5 DIN ISO 2049
L1.5 DIN ISO 2049
Viscosity at 100 °C mm²/s 5.8 DIN 51562-1
5.8 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 32.1 DIN 51562-1
32.1 mm²/s DIN 51562-1
Viscosity Index VI 122 DIN ISO 2909
122 DIN ISO 2909
Approvals Alstom HTGD 90117 V0001 S, BS 489, Brown Boveri HTGD 90117, CEGB 207001, DIN 51515-1 L-TD, DIN 51515-2 L-TG, General Electric GEK 32568 A, General Electric GEK 32568 C, MIL-L-17672 D, Siemens TLV 9013 05, Siemens TLV 901304, U.S. Steel 120, Westinghouse Turbine Oil Spec.
Alstom HTGD 90117 V0001 S, BS 489, Brown Boveri HTGD 90117, CEGB 207001, DIN 51515-1 L-TD, DIN 51515-2 L-TG, General Electric GEK 32568 A, General Electric GEK 32568 C, MIL-L-17672 D, Siemens TLV 9013 05, Siemens TLV 901304, U.S. Steel 120, Westinghouse Turbine Oil Spec.
FZG Pass Load Stage 10 DIN ISO 14635-1
10 DIN ISO 14635-1
Air release at 50 °C, max. 3 DIN ISO 9120
3 DIN ISO 9120
Copper strip corrosion pass DIN EN ISO 2160
pass DIN EN ISO 2160
Purity grade 19/16/13 ISO 4406
19/16/13 ISO 4406
Time to collapse of the foam at 25 °C s 245 ISO 6247
245 s ISO 6247
Foam Volume at 25 °C ml 60 ISO 6247
60 ml ISO 6247
Recommendations Alstom HTGD 90117 V0001 S, British Standard BS 489, Brown Boveri HTGD 90117, CEGB Standard 207001, General Electric GEK 32568 A, General Electric GEK 32568 C, MIL-L-17672 D, U.S.Steel 120, Westinghouse Electric Corp. Turbine Oil Spec.
Alstom HTGD 90117 V0001 S, British Standard BS 489, Brown Boveri HTGD 90117, CEGB Standard 207001, General Electric GEK 32568 A, General Electric GEK 32568 C, MIL-L-17672 D, U.S.Steel 120, Westinghouse Electric Corp. Turbine Oil Spec.
Water Separability s 35 DIN 51589-1
35 s DIN 51589-1
NZ Neutralisation number mg KOH/g 0.06 DIN 51558-1
0.06 mg KOH/g DIN 51558-1
RAVENOL Bettbahnöl 32

RAVENOL Bettbahnöl 32

RAVENOL Bettbahnoel 32 is mineral slide way oil CGLP.

Compliance with the requirements:
Eaton Vickers M-2950-S, Fives Cincinnati P-53, GM LS-2, GM LW-03-1-04

Show more Hide details

SAE:  32W

  • Available packaging
  • Full description
  • Product parameters

Volume:
208 L

Vendor code:
1350374-208
1350374-208-01-999

RAVENOL Bettbahnoel 32 is characterized by good lubricating and sliding properties as well as high tackiness.

RAVENOL Bettbahnoel 32 is formulated with mineral base oils and contains additives and corrosion inhibitors to prevent rust formation and stains on slide ways and track surfaces.

RAVENOL Bettbahnoel 32 is compatible with most of drilling-, cutting or grinding emulsions. The lubricant film of the slide way oil is not washed off.

Application instructions

RAVENOL Bettbahnoel 32 can be used for all types of lubrication systems such as pressure, circulating or central lubrication. If necessary, it can be applied manually. It can also be used for lubricating bearings and gear boxes.

Characteristics

  • Wear protection and pressure absorption capacity
  • High tackiness
  • Good corrosion protection, no rust and stain formation
  • Resistance to aqueous metalworking fluids
  • Good demulsification
Parameter Unit Value Tests
SAE 32W
32W
Type Mineral
Mineral
Recomendations Eaton Vickers M-2950-S, Fives Cincinnati P-53, GM LS-2, GM LW-03-1-04
Eaton Vickers M-2950-S, Fives Cincinnati P-53, GM LS-2, GM LW-03-1-04
specification AFNOR E 60-203 HG, AFNOR E 60-203 L-G, DIN 51502 CGLP, DIN 51517-3, DIN 51524-2, GB 11118.1-94 L-HG, GB 11118.1-94 L-HM, ISO 11158 HG, ISO 11158 HM, ISO 19378 GA, ISO 19378 GB, ISO 6743-13 GA, ISO 6743-13 GB, ISO 6743-6 CKC, SAE MS 1007 Type E, SH/T 0361-98 L-G
AFNOR E 60-203 HG, AFNOR E 60-203 L-G, DIN 51502 CGLP, DIN 51517-3, DIN 51524-2, GB 11118.1-94 L-HG, GB 11118.1-94 L-HM, ISO 11158 HG, ISO 11158 HM, ISO 19378 GA, ISO 19378 GB, ISO 6743-13 GA, ISO 6743-13 GB, ISO 6743-6 CKC, SAE MS 1007 Type E, SH/T 0361-98 L-G
Density at 20 °C g/cm³ 854 EN ISO 12185
854 g/cm³ EN ISO 12185
Color Yellow visual
Yellow visual
Viscosity at 100 °C mm²/s 5.75 DIN 51562-1
5.75 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 31.9 DIN 51562-1
31.9 mm²/s DIN 51562-1
Viscosity Index VI 123 DIN ISO 2909
123 DIN ISO 2909
Approvals AFNOR E 60-203 HG, AFNOR E 60-203 L-G, DIN 51517-3, DIN 51524-2, DIN 51502 CGLP, Eaton Vickers M-2950-S, Fives Cincinnati P-53, GB 11118.1-94 L-HG, GB 11118.1-94 L-HM, GM LS-2, GM LW-03-1-04, ISO 11158 HG, ISO 11158 HM, ISO 19378 GA, ISO 19378 GB, ISO 6743-13 GA, ISO 6743-13 GB, ISO 6743-6 CKC, SAE MS 1007 Type E, SH/T 0361-98 L-G
AFNOR E 60-203 HG, AFNOR E 60-203 L-G, DIN 51517-3, DIN 51524-2, DIN 51502 CGLP, Eaton Vickers M-2950-S, Fives Cincinnati P-53, GB 11118.1-94 L-HG, GB 11118.1-94 L-HM, GM LS-2, GM LW-03-1-04, ISO 11158 HG, ISO 11158 HM, ISO 19378 GA, ISO 19378 GB, ISO 6743-13 GA, ISO 6743-13 GB, ISO 6743-6 CKC, SAE MS 1007 Type E, SH/T 0361-98 L-G
Recommendations Eaton Vickers M-2950-S, Fives Cincinnati P-53, GM LS-2 LW-03-1-04
Eaton Vickers M-2950-S, Fives Cincinnati P-53, GM LS-2 LW-03-1-04

Recognizing the number...
